S760K

Active

Switchcraft Inc.

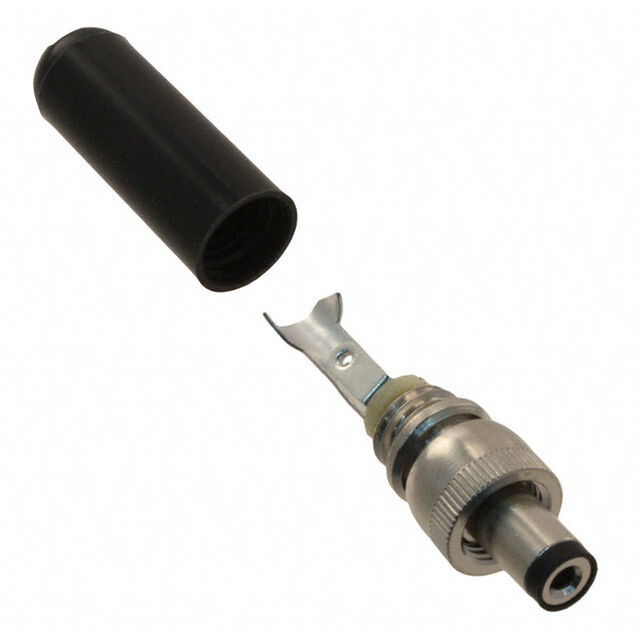

CONN POWER PLUG SOLDER EYELET

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN POWER PLUG SOLDER EYELET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S760K	S760 Series

Actual Diameter [diameter]	0.079 in, 0.217 in	0.079 - 0.217 in
Actual Diameter [diameter]	5.5 mm, 2 mm	2 - 5.5 mm
Body Color	Silver, Black	Silver, Black
Body Material	Brass	Brass
Connector Type	Plug	Plug
Contact Material	Brass	Brass
Contact Material - Plating	Tin	Tin
Current Rating (Amps)	5 A	2 - 5 A
Features	Cable Clamp, Thread Lock	Cable Clamp, Thread Lock
Gender	Female	Female
Housing Material	Thermoplastic	Thermoplastic
Includes	1 Connector, 1 Handle	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	-	0.079 - 0.217 in
Industry Recognized Mating Diameter	-	2 - 5.5 mm
Insulation Color	Black	Black, White
Internal Switch(s)	False	False
Mating Length/Depth	-	0.374 in
Mating Length/Depth	-	9.5 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s)

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Part	Includes	Contact Material	Current Rating (Amps)	Housing Material	Body Color	Contact Material - Plating	Mounting Type	Termination	Body Material	Insulation Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Gender	Mating Length/Depth	Mating Length/Depth	Features
Switchcraft Inc. S760BKZ	1 Connector, 1 Handle, 1 Insulator Tube	Brass	2 A	Thermoplastic	Black, Silver	Tin	Free Hanging (In-Line)	Solder Eyelet(s)	Brass	Black	2	2	Unshielded	Plug	0.079 in, 0.217 in	2 mm, 5.5 mm	0.079 in, 0.217 "	2 mm, 5.5 mm	Female	0.374 in	9.5 mm
Switchcraft Inc. S760K	1 Connector, 1 Handle	Brass	5 A	Thermoplastic	Black, Silver	Tin	Free Hanging (In-Line)	Solder Eyelet(s)	Brass	Black	2	2	Unshielded	Plug	0.079 in, 0.217 in	2 mm, 5.5 mm			Female			Cable Clamp, Thread Lock
Switchcraft Inc. S760BK	1 Connector, 1 Handle	Brass	5 A	Thermoplastic	Black, Silver	Tin	Free Hanging (In-Line)	Solder Eyelet(s)	Brass	White	2	2	Unshielded	Plug					Female			Cable Clamp, Thread Lock
