AXF6A5012A

Active

Panasonic Electric Works

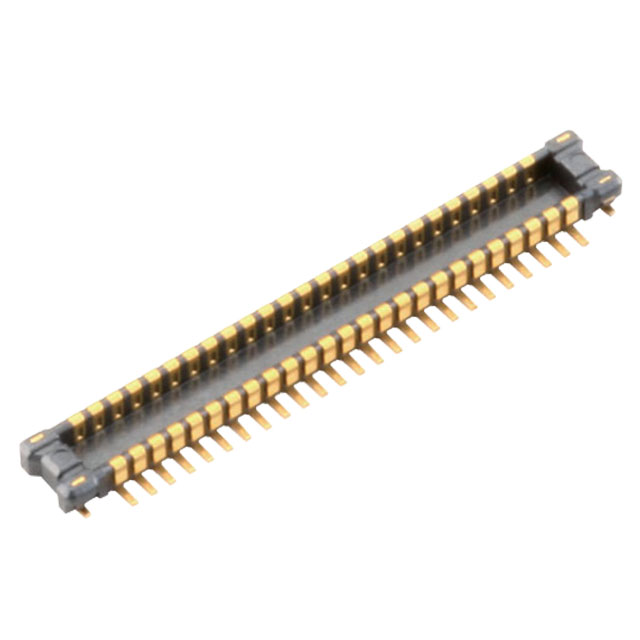

CONN HDR 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF6A5012A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish	Features	Mounting Type	Connector Type	Number of Positions	Number of Rows
Panasonic Electric Works AXF6A5012A	0.35 mm	0.014 in	0.8 mm	0.026 in	0.65 mm	Gold	Solder Retention	Surface Mount	Header Outer Shroud Contacts	50	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
