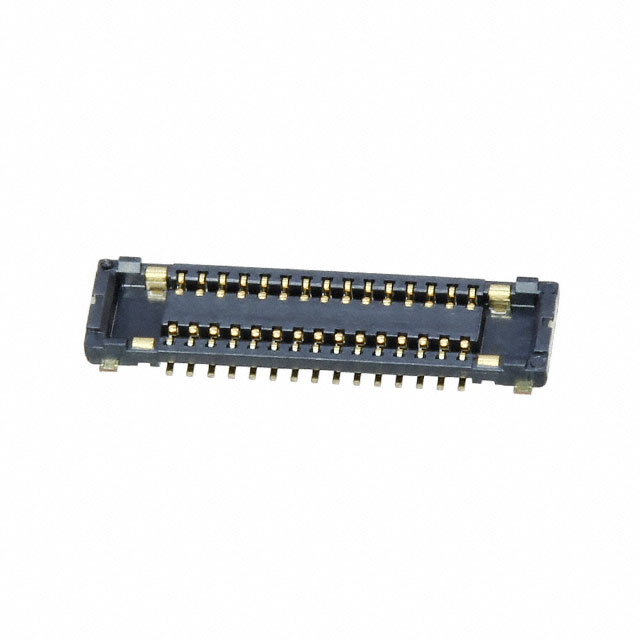

AXG7300J7

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG7300J7

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions [custom]	30
Number of Positions [custom]	2
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions	Features	Contact Finish	Number of Rows	Connector Type	Mounting Type	Number of Positions [custom]	Number of Positions [custom]
Panasonic Electric Works AXG730044	0.35 mm	0.014 in	0.023 in	0.59 mm	0.6 mm	30	Solder Retention	Gold	2	Socket Center Strip Contacts	Surface Mount
Panasonic Electric Works AXG7300J7	0.35 mm	0.014 in	0.023 in	0.59 mm	0.6 mm		Solder Retention	Gold	2	Socket Center Strip Contacts	Surface Mount	30	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

32 (30 + 2 Power) Position Connector Socket, Center Strip Contacts Surface Mount Gold
