1059681-1

Active

TE Connectivity Aerospace, Defense and Marine

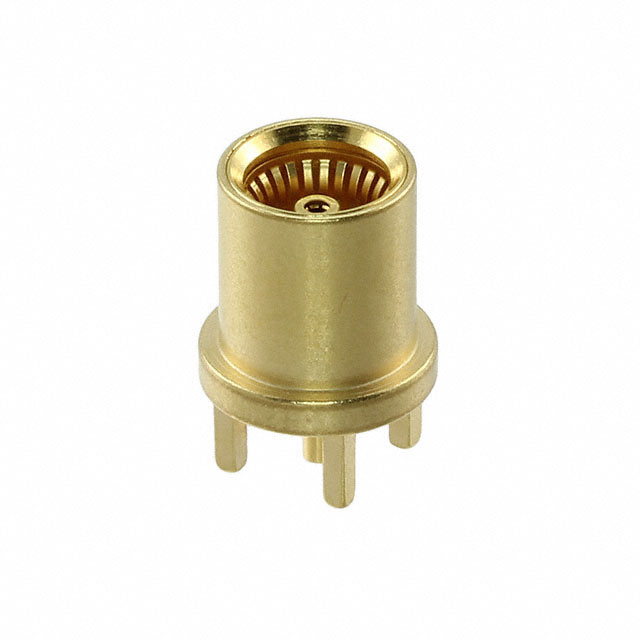

CONN MINI OSP JACK STR 50OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MINI OSP JACK STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1059681-1

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, OSP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

CONN MINI OSP JACK STR 50OHM PCB

Part	Body Material	Impedance	Center Contact Plating	Connector Style	Shield Termination	Mating Cycles	Body Finish	Contact Termination	Number of Ports	Connector Type	Frequency - Max [Max]	Housing Color	Fastening Type	Mounting Type	Center Contact Material	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Aerospace, Defense and Marine 1059681-1	Stainless Steel	50 Ohms	Gold	Mini, OSP	Solder	5000	Gold	Solder	1	Female Socket, Jack	18 GHz	Gold	Snap-On	Through Hole	Beryllium Copper	Polytetrafluoroethylene (PTFE)	335 V	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 45.06

General part information

OSP, Mini Connector Jack, Female Socket 50 Ohms Through Hole Solder
