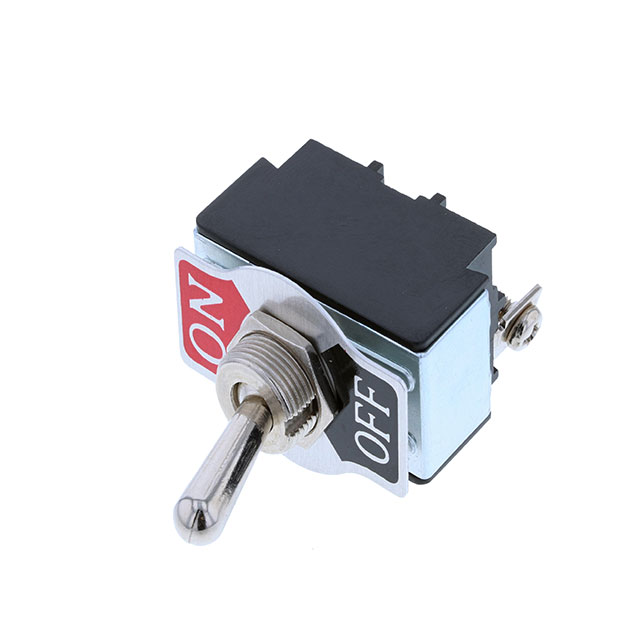

TB2-1A-DC-4

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TB2-1A-DC-4

Actuator Length [x]	17.7 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

SWITCH TOGGLE SPST 20A 12V

Part	Illumination	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Circuit	Actuator Type	Switch Function	Termination Style	Bushing Thread	Bushing Thread	Current Rating (Amps)	Electrical Life	Voltage Rating - DC
Switch Components TB2-1A-DC-4	Non-Illuminated	12.2 mm	17.7 mm	SPST	Standard Round	On-Off	Screw Terminal	M12	0.75	20 A	6000 Cycles	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.18

General part information

Toggle Switch SPST Panel Mount
