M3TKK-1006R
Active3M
IDC CABLE - MSD10K/MC10M/MPK10K
Deep-Dive with AI
Search across all available documentation for this part.
M3TKK-1006R
Active3M
IDC CABLE - MSD10K/MC10M/MPK10K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3TKK-1006R | M3TKK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | 152.4 mm | 1.52 - 508 m |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.67 - 5 ' |
| Length | - | 1.02 - 914.4 m |
| Length | - | 1.5 - 3.34 ft |
| Number of Positions | 10 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3TKK Series
IDC CABLE - MSD50K/MC50F/MPK50K
| Part | Shielding | Length | Length | Color | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Number of Rows | Features | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Connector Type | Length | Length | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Unshielded | 1.52 m | 5 ' | Multiple, Twisted Pair (Flat) | IDC | 0.76 Ám | 30 Áin | Gold | 50 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | ||||||
Unshielded | 152.4 mm | IDC | 0.76 Ám | 30 Áin | Gold | 50 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | 6 " | 0.5 ' | ||||||
Unshielded | 152.4 mm | Multiple, Ribbon | IDC | 0.76 Ám | 30 Áin | Gold | 40 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | 6 " | 0.5 ' | |||||
Unshielded | Multiple, Twisted Pair (Flat) | IDC | 0.76 Ám | 30 Áin | Gold | 60 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | 1.02 m | 3.34 ft | ||||||
Unshielded | 508 mm | 1.67 ft | Multiple, Twisted Pair (Flat) | IDC | 0.76 Ám | 30 Áin | Gold | 50 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | ||||||
Unshielded | 508 mm | 1.67 ft | Multiple, Twisted Pair (Flat) | IDC | 0.76 Ám | 30 Áin | Gold | 34 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | ||||||
Unshielded | Multiple, Ribbon | IDC | 0.76 Ám | 30 Áin | Gold | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | 914.4 mm | 3 ft | 16 | ||||||
Unshielded | IDC | 0.76 Ám | 30 Áin | Gold | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | 914.4 mm | 3 ft | 16 | |||||||
Unshielded | 152.4 mm | Multiple, Ribbon | IDC | 0.76 Ám | 30 Áin | Gold | 50 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | 6 " | 0.5 ' | |||||
Unshielded | IDC | 0.76 Ám | 30 Áin | Gold | 24 | 2 | Polarizing Key | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Socket to Plug | 914.4 mm | 3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.02 | |
| 10 | $ 10.01 | |||
| 25 | $ 9.04 | |||
| 50 | $ 8.39 | |||
| 100 | $ 7.80 | |||
| 250 | $ 7.10 | |||
| 500 | $ 6.63 | |||
| 1000 | $ 6.21 | |||
Description
General part information
M3TKK Series

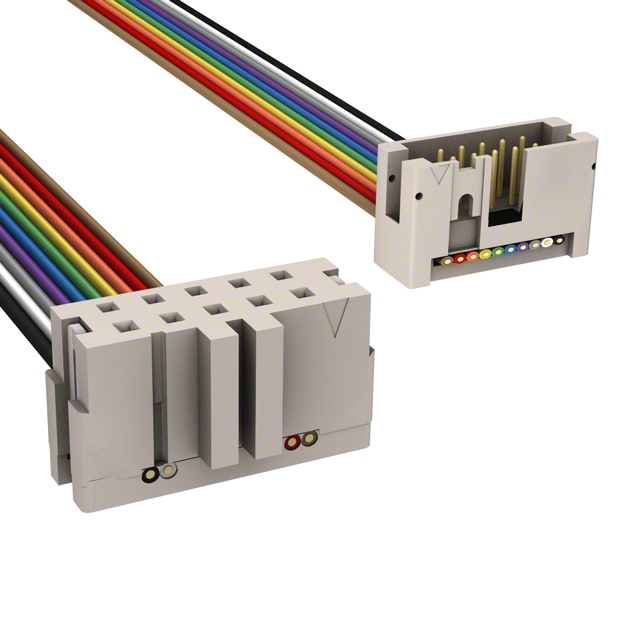

10 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
