M3TKK-3420K

Active

IDC CABLE - MSD34K/MC34F/MPK34K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 4600 Series Drawing +1

M3TKK-3420K

Active

IDC CABLE - MSD34K/MC34F/MPK34K

Deep-Dive with AI

DocumentsDatasheet 4600 Series Drawing +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.42
		10	$ 24.26
		25	$ 21.98
		50	$ 20.44
		100	$ 19.05
		250	$ 17.41
		500	$ 16.30

Description

General part information

M3TKK Series

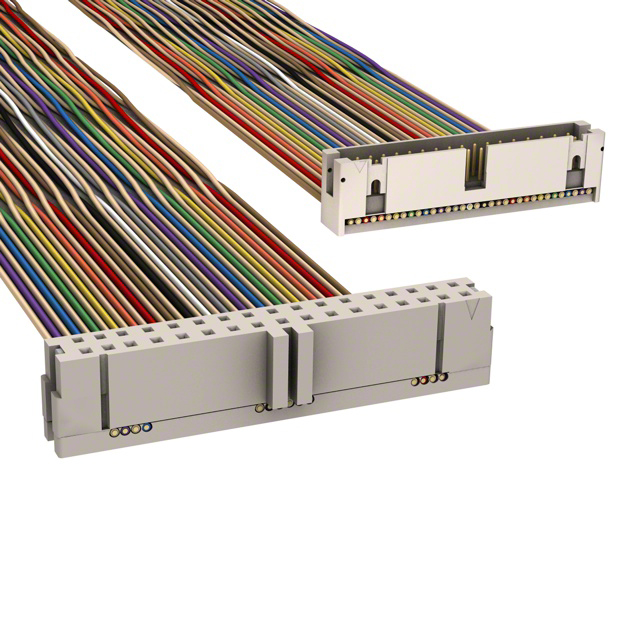

34 Position Cable Assembly Rectangular Socket to Plug 1.67' (508.00mm)

Documents

Technical documentation and resources

Datasheet

4600 Series Drawing

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3TKK-3420K	M3TKK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length	508 mm	1.52 - 508 m
Length	1.67 ft	1.67 - 5 '
Length	-	6 "
Length	-	0.5 '
Length	-	1.02 - 914.4 m
Length	-	1.5 - 3.34 ft
Number of Positions	34	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3TKK Series

IDC CABLE - MSD50K/MC50F/MPK50K

Part	Shielding	Length	Length	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Number of Rows	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Connector Type	Length	Length	Length [x]	Length [x]	Number of Positions
3M M3TKK-5060K	Unshielded	1.52 m	5 '	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Gold	50	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug
3M M3TKK-5006J	Unshielded	152.4 mm			IDC	0.76 Ám	30 Áin	Gold	50	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug	6 "	0.5 '
3M M3TKK-4006R	Unshielded	152.4 mm		Multiple, Ribbon	IDC	0.76 Ám	30 Áin	Gold	40	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug	6 "	0.5 '
3M M3TKK-6040K	Unshielded			Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Gold	60	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug			1.02 m	3.34 ft
3M M3TKK-5020K	Unshielded	508 mm	1.67 ft	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Gold	50	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug
3M M3TKK-3420K	Unshielded	508 mm	1.67 ft	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Gold	34	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug
3M M3TKK-1636R	Unshielded			Multiple, Ribbon	IDC	0.76 Ám	30 Áin	Gold		2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug			914.4 mm	3 ft	16
3M M3TKK-1636J	Unshielded				IDC	0.76 Ám	30 Áin	Gold		2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug			914.4 mm	3 ft	16
3M M3TKK-5006R	Unshielded	152.4 mm		Multiple, Ribbon	IDC	0.76 Ám	30 Áin	Gold	50	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug	6 "	0.5 '
3M M3TKK-2436J	Unshielded				IDC	0.76 Ám	30 Áin	Gold	24	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	Socket to Plug			914.4 mm	3 ft
