8132 060500

Active

Belden Inc.

MULTI-PAIR 4CON 28AWG CHROM

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4CON 28AWG CHROM

Technical Specifications

Parameters and characteristics for this part

Specification	8132 060500

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Ratings	Shield Coverage	Wire Gauge	Number of Conductors	Usage	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Cable Type	Shield Material	Features	Conductor Material	Length [x]	Length [x]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 8132 060100	0.22 in	5.59 mm	Poly-Vinyl Chloride (PVC)	UL Style 2919	65 % 100 %	28 AWG	4	Computer	Braid Foil	-30 ░C	80 C	36 AWG	7	Foam Polyethylene (FPE)	Multi-Pair	Aluminum Copper Tinned	Drain Wire	Copper Tinned	30.5 m	100 ft	Chrome	0.889 mm	0.035 in
Belden Inc. 8132 060500	0.22 in	5.59 mm	Poly-Vinyl Chloride (PVC)	UL Style 2919	65 % 100 %	28 AWG	4	Computer	Braid Foil	-30 ░C	80 C	36 AWG	7	Foam Polyethylene (FPE)	Multi-Pair	Aluminum Copper Tinned	Drain Wire	Copper Tinned	152.4 m	500 '	Chrome	0.889 mm	0.035 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.06

General part information

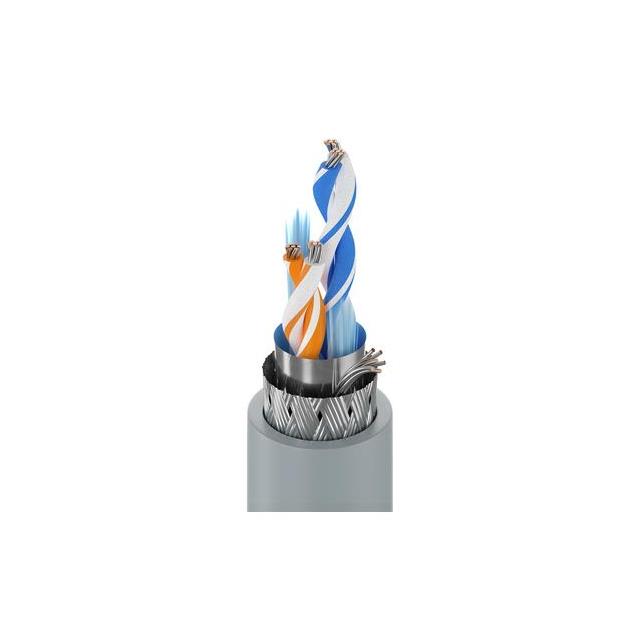

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 500.0' (152.4m)
