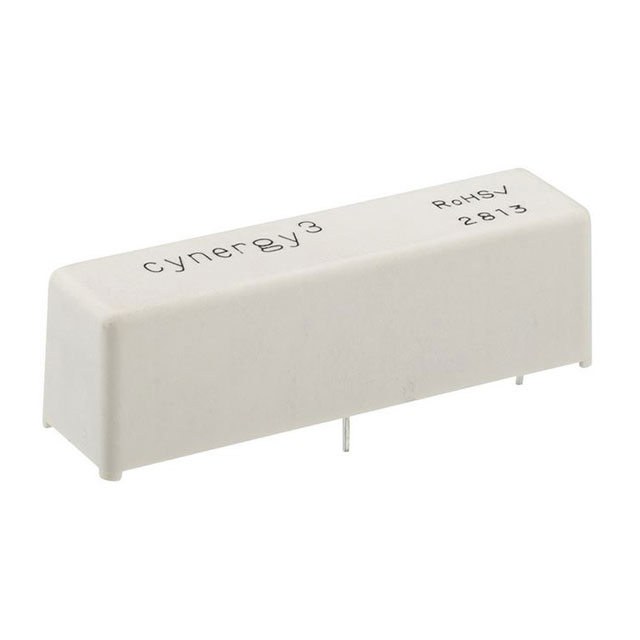

DAT70515-HR

Active

Sensata Technologies

RELAY REED SPST-NO 2A 5V

Search across all available documentation for this part.

Active

Sensata Technologies

RELAY REED SPST-NO 2A 5V

Technical Specifications

Parameters and characteristics for this part

RELAY REED SPST-NO 2A 5V

Part	Coil Resistance	Must Release Voltage	Contact Form	Coil Type	Operate Time	Release Time	Mounting Type	Termination Style	Must Operate Voltage	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Coil Voltage	Coil Current	Contact Material
Sensata Technologies DAT70515-HR	16 Ohms	0.5 VDC	SPST-NO (1 Form A)	Non Latching	3 ms	2 ms	Through Hole	PC Pin	3.7 VDC	2 A	-20 C	70 °C	10000 VDC, 10000 VAC	5 VDC	313 mA	Tungsten (W)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 81.91

General part information

RELAY REED SPST-NO 2A 5V

Technical documentation and resources

No documents available
