P230-3FA25BR1K

Active

TT Electronics/BI

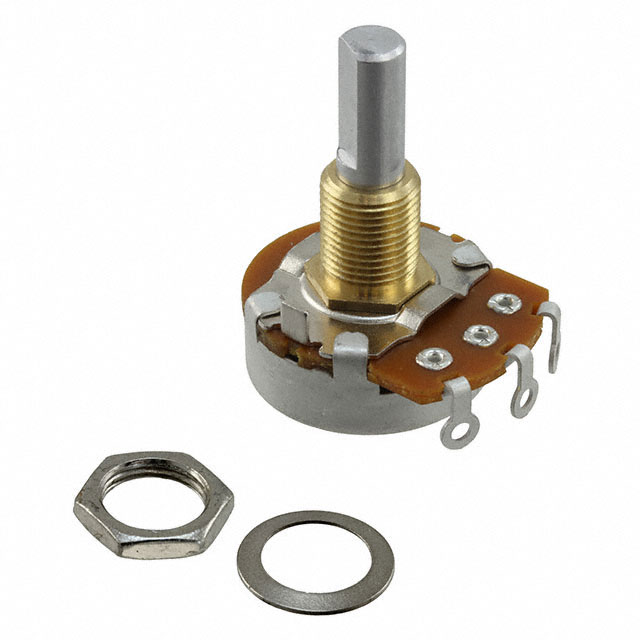

POT 1K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P230-3FA25BR1K

Active

TT Electronics/BI

POT 1K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.42
		10	$ 3.55
		25	$ 3.25
		40	$ 3.11
		80	$ 2.91
		230	$ 2.62
		440	$ 2.46
		945	$ 2.28

Description

General part information

P230 Series

1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W Solder Lug

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P230-3FA25BR1K	P230 Series

Actuator Diameter	6.35 mm	6.35 mm
Actuator Diameter	-	6 mm
Actuator Diameter [diameter]	0.25 in	0.236 - 0.25 in
Actuator Length	-	16 - 35 mm
Actuator Length	-	0.591 - 1.378 in
Actuator Length	-	15 - 19 mm
Actuator Length [x]	0.984 in	0.984 in
Actuator Length [x]	25 mm	25 mm
Actuator Type	Flatted	Slotted, Flatted, Knurled and Slotted
Adjustment Type	User Defined	User Defined, Top
Built in Switch	False	False
Bushing Thread	3/8-32	3/8-32
Fader Type	-	Standard
Mounting Type	-	Through Hole
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.5 W	0.2 - 250 mW
Power (Watts)	0.5 W	0.25 - 0.5 W
Power (Watts)	-	1/5
Resistance	-	10000 Ohms
Resistance (Ohms)	1 kOhms	1 - 500 kOhms
Resistance (Ohms)	-	1M, 150k, 300k, 10k, 250k, 25k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [diameter]	0.945 in	0.945 in
Size - Body [diameter]	24 mm	24 mm
Size / Dimension	-	0.354 in
Size / Dimension	-	9 mm
Size / Dimension	-	6.5 mm
Size / Dimension	-	45 mm
Size / Dimension	-	0.256 in
Size / Dimension	-	1.772 in
Taper	Linear	Logarithmic, Linear
Termination Style	Solder Lug	Solder Lug
Tolerance	20 %	20 %
Travel Range	-	30 mm

P230 Series

POT 1M OHM 1/4W PLASTIC LOG

Part	Power (Watts)	Power (Watts)	Bushing Thread	Size - Body [diameter]	Size - Body [diameter]	Number of Turns	Tolerance	Number of Gangs	Termination Style	Resistive Material	Resistance (Ohms)	Adjustment Type	Taper	Rotation	Actuator Type	Actuator Length [z]	Actuator Length [z]	Actuator Diameter	Actuator Diameter [diameter]	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Diameter [diameter]	Actuator Length
TT Electronics/BI P230-2EC20AR1M	0.25 W	250 mW	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic	1M	User Defined	Logarithmic	300 ░	Slotted	20 mm	0.787 in	6.35 mm	0.25 in
TT Electronics/BI P230-1FD20BR150K	0.5 W	0.5 W	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic	150k	User Defined	Linear	300 ░	Flatted	20 mm	0.787 in	6.35 mm	0.25 in
TT Electronics/BI P230-2FC20BR500K	0.5 W	0.5 W	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic		User Defined	Linear	300 ░	Flatted	20 mm	0.787 in	6.35 mm	0.25 in	500 kOhms
TT Electronics/BI P230-1FC25BR100K	0.5 W	0.5 W	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic		User Defined	Linear	300 ░	Flatted			6.35 mm	0.25 in	100 kOhms	0.984 in	25 mm
TT Electronics/BI P230-2EC20AR500K	0.25 W	250 mW	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic		User Defined	Logarithmic	300 ░	Slotted	20 mm	0.787 in	6.35 mm	0.25 in	500 kOhms
TT Electronics/BI P230-2MC16BR300K	0.5 W	0.5 W	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic	300k	User Defined	Linear	300 ░	Knurled and Slotted	16 mm	0.63 in		0.236 in				6 mm
TT Electronics/BI P230-1FC15AR10K	0.25 W	250 mW	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic	10k	User Defined	Logarithmic	300 ░	Flatted		0.591 in	6.35 mm	0.25 in					15 mm
TT Electronics/BI P230-1FC15BR10K	0.5 W	0.5 W	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic	10k	User Defined	Linear	300 ░	Flatted		0.591 in	6.35 mm	0.25 in					15 mm
TT Electronics/BI P230-1FC20AR250K	0.25 W	250 mW	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic	250k	User Defined	Logarithmic	300 ░	Flatted	20 mm	0.787 in	6.35 mm	0.25 in
TT Electronics/BI P230-3FA25BR1K	0.5 W	0.5 W	3/8-32	0.945 in	24 mm	1	20 %	1	Solder Lug	Conductive Plastic		User Defined	Linear	300 ░	Flatted			6.35 mm	0.25 in	1 kOhms	0.984 in	25 mm
