1212C SL002

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1212C SL002	1212C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.156 in	0.156 in
Jacket (Insulation) Diameter [diameter]	3.96 mm	3.96 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 2COND 24AWG SHLD 1000'

Part	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Usage	Voltage	Jacket Color	Jacket (Insulation) Material	Conductor Material	Shield Material	Shield Coverage	Cable Type	Conductor Insulation	Length [x]	Length [x]
ALPHA WIRE 1212C SL001	24 AWG	32 AWG	7	Drain Wire	-20 C	80 C	2	Foil	0.156 in	3.96 mm	1000 ft	304.8 m	Communication, Control	300 V	Slate	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Aluminum	100 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1212C SL005	24 AWG	32 AWG	7	Drain Wire	-20 C	80 C	2	Foil	0.156 in	3.96 mm			Communication, Control	300 V	Slate	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Aluminum	100 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft
ALPHA WIRE 1212C SL002	24 AWG	32 AWG	7	Drain Wire	-20 C	80 C	2	Foil	0.156 in	3.96 mm			Communication, Control	300 V	Slate	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Aluminum	100 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 356.78
		2	$ 352.69
Newark	Spool of 500	1	$ 458.41

General part information

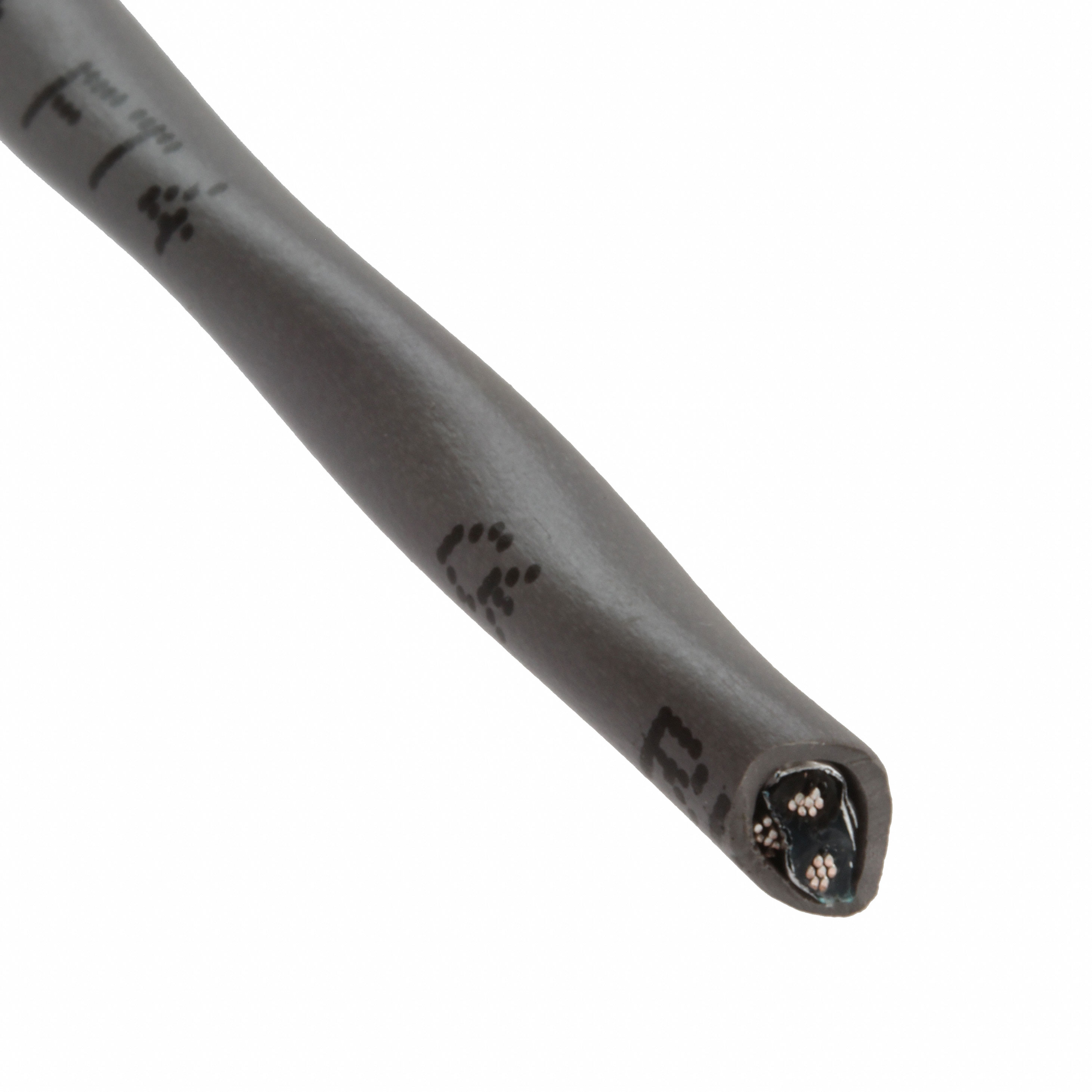

2 Conductor Multi-Conductor Cable Slate 24 AWG Foil 500.0' (152.4m)

Technical documentation and resources
