CT2234-6

Active

Cal Test Electronics

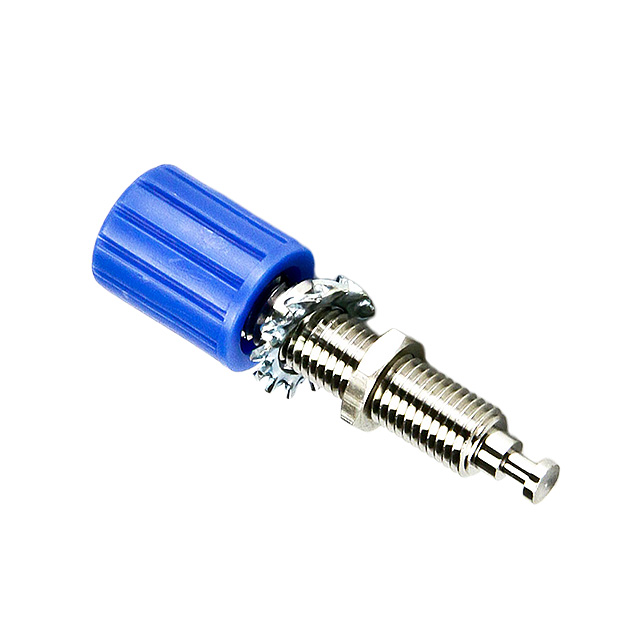

CONN BIND POST KNURLED BLUE

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BIND POST KNURLED BLUE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT2234-6	CT2234 Series

Color	Blue	White, Red, Blue, Yellow, Green
Cross Hole Diameter [diameter]	0.08 "	0.08 "
Cross Hole Diameter [diameter]	2 mm	2 mm
Current Rating (Amps)	36 A	36 A
Head Size [diameter]	0.43 in	0.43 in
Head Size [diameter]	11 mm	11 mm
Material - Body	Brass	Brass
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Nut Material	Brass	Brass
Nut Plating	Nickel	Nickel
Panel Thickness	0.6 in	0.6 in
Panel Thickness	15.24 mm	15.24 mm
Plating - Body	Nickel	Nickel
Termination	Turret, Threaded	Turret, Threaded
Termination Thread	M6	M6
Type	Standard	Standard
Voltage Rating	1200 VDC	1200 VDC

CONN BIND POST KNURLED WHITE

Part	Nut Plating	Material - Insulation	Nut Material	Termination	Plating - Body	Material - Body	Panel Thickness	Panel Thickness	Head Size [diameter]	Head Size [diameter]	Voltage Rating	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Type	Color	Termination Thread	Current Rating (Amps)
Cal Test Electronics CT2234-9	Nickel	Nylon, Polyamide (PA)	Brass	Threaded, Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	White	M6	36 A
Cal Test Electronics CT2234-2	Nickel	Nylon, Polyamide (PA)	Brass	Threaded, Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Red	M6	36 A
Cal Test Electronics CT2234-6	Nickel	Nylon, Polyamide (PA)	Brass	Threaded, Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Blue	M6	36 A
Cal Test Electronics CT2234-4	Nickel	Nylon, Polyamide (PA)	Brass	Threaded, Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Yellow	M6	36 A
Cal Test Electronics CT2234-5	Nickel	Nylon, Polyamide (PA)	Brass	Threaded, Turret	Nickel	Brass	0.6 in	15.24 mm	0.43 in	11 mm	1200 VDC	0.08 "	2 mm	Standard	Green	M6	36 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.45

General part information

Binding Post Connector Standard Knurled Blue Nickel
