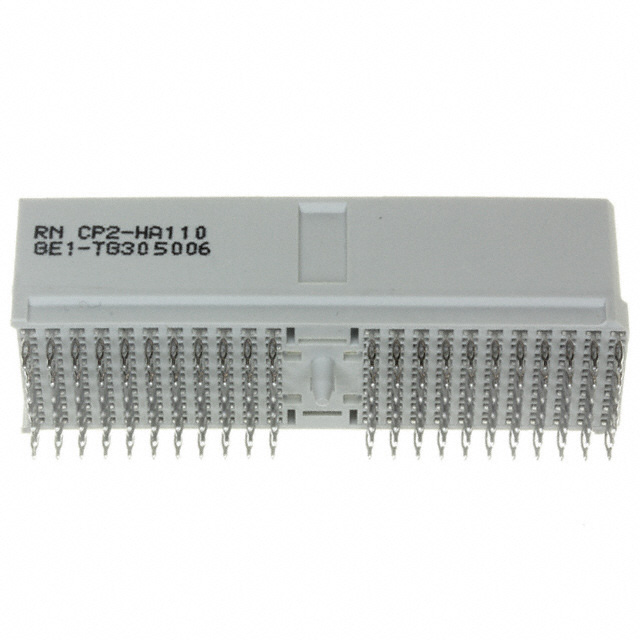

CP2-HA110-GE1-TG30

Obsolete

3M (TC)

CONN HEADER 154POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN HEADER 154POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Connector Style	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions Loaded	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Termination	Connector Usage
3M (TC) CP2-HA110-GE1-KR	Header Male Pins	A 22	0.079 in	2 mm	2 5	Gold	85 °C	-40 °C	154	All	Through Hole	0.76 Ám	30 Áin	Board Guide	Press-Fit	CompactPCI Hot Swap
3M (TC) CP2-HA110-GC1-KR	Header Male Pins	A 22	0.079 in	2 mm	2 5	Gold	85 °C	-40 °C	154	All	Through Hole	0.76 Ám	30 Áin	Board Guide	Press-Fit	CompactPCI Hot Swap
3M (TC) CP2-HA110-GC1-TG30	Header Male Pins	A 22	0.079 in	2 mm	2 5	Gold	85 °C	-40 °C	154	All	Through Hole	0.76 Ám	30 Áin	Board Guide	Press-Fit	CompactPCI Hot Swap
3M (TC) CP2-HA110-GE1-TG30	Header Male Pins	A 22	0.079 in	2 mm	2 5	Gold	85 °C	-40 °C	154	All	Through Hole	0.76 Ám	30 Áin	Board Guide	Press-Fit	CompactPCI Hot Swap
3M (TC) CP2-HA110-E1-KR	Header Male Pins	A 22	0.079 in	2 mm	5	Gold	85 °C	-40 °C	110 positions	All	Through Hole	0.76 Ám	30 Áin	Board Guide	Press-Fit	CompactPCI Hot Swap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
