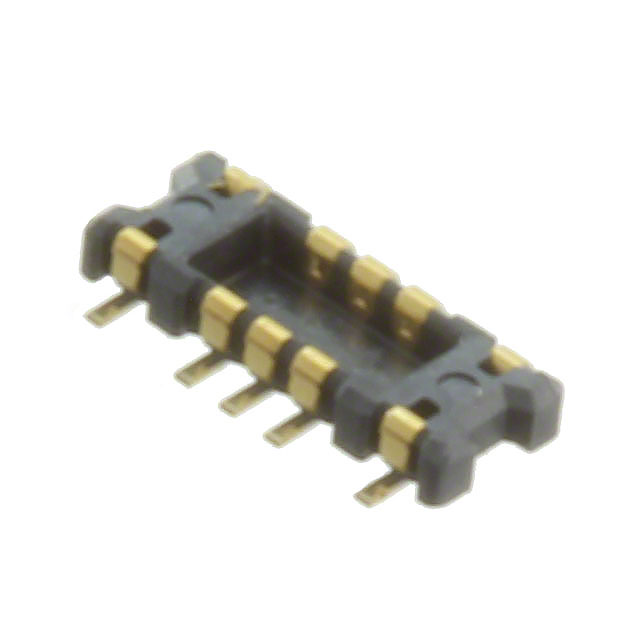

AXG206144A
ActivePanasonic Electric Works
CONN HDR 6POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXG206144A
ActivePanasonic Electric Works
CONN HDR 6POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXG206144A |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.46 mm |
| Height Above Board | 0.018 in |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.62 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.49 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.38 | |||
Description
General part information
AXG206144 Series
6 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
