SI53204-A01AGM
ActiveSkyworks Solutions Inc.
IC CLOCK BUFFER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SI53204-A01AGM
ActiveSkyworks Solutions Inc.
IC CLOCK BUFFER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SI53204-A01AGM |
|---|---|
| Differential - Input:Output | No/Yes |
| Frequency - Max [Max] | 200 MHz |
| Input | Clock |
| Main Purpose | PCI Express (PCIe) |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCSL |

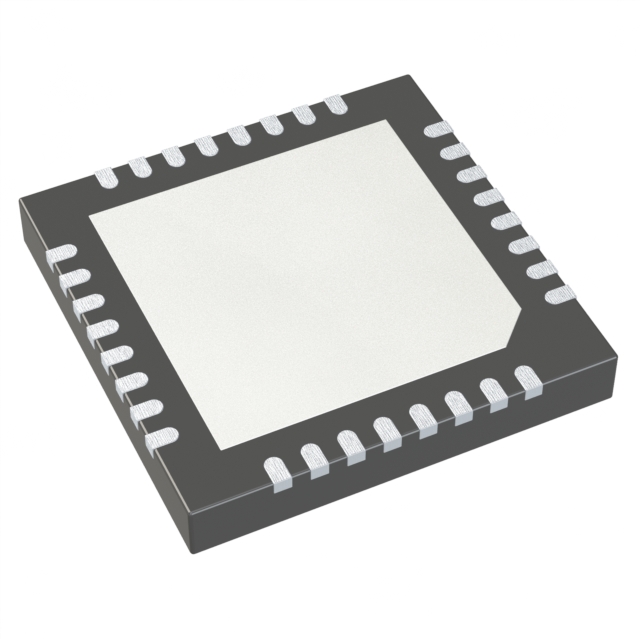

| Package / Case | 32-VFQFN Exposed Pad |
| PLL | True |
| Ratio - Input:Output | 1:4 |
| Supplier Device Package | 32-QFN (5x5) |
| Voltage - Supply [Max] | 1.89 V, 1.575 V |
| Voltage - Supply [Min] | 1.425 V, 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.58 | |
| 10 | $ 4.11 | |||
| 25 | $ 3.89 | |||
| 80 | $ 3.37 | |||
| 230 | $ 3.20 | |||
| 490 | $ 2.87 | |||
| 980 | $ 2.42 | |||
| 2450 | $ 2.30 | |||
Description
General part information
SI53204 Series
PCI Express (PCIe) Fanout Buffer (Distribution) IC 200MHz 1 Output 32-QFN (5x5)
