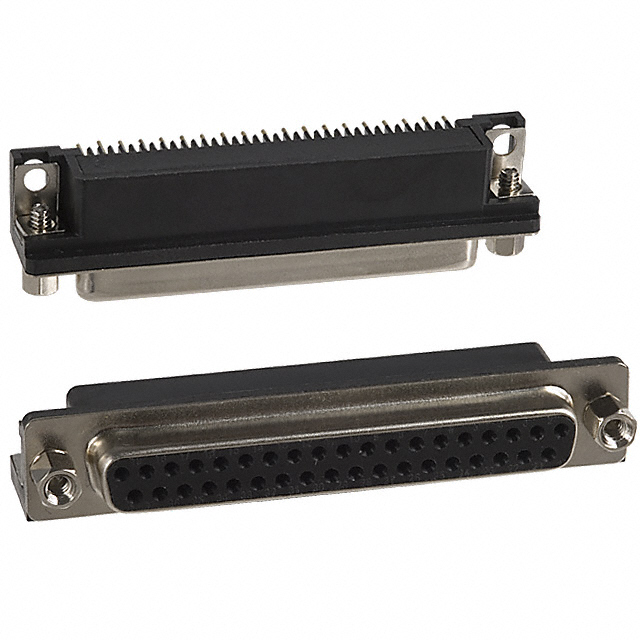

182-037-213R181 - 182-037-212-181, 182-037-213R181

182-037-213R181

Active
MH Connectors

D SUB CONNECTOR, DB37, 37 CONTACTS, RECEPTACLE, THROUGH HOLE, DC, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+3
182-037-213R181 - 182-037-212-181, 182-037-213R181

182-037-213R181

Active
MH Connectors

D SUB CONNECTOR, DB37, 37 CONTACTS, RECEPTACLE, THROUGH HOLE, DC, 182 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+3

Technical Specifications

Parameters and characteristics for this part

Specification182-037-213R181
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGround Strap
Flange FeatureFemale Screwlock (4-40), Mating Side
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions37
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout4 (DC, C)
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.87
10$ 4.42
25$ 4.19
40$ 4.09
80$ 3.90
240$ 3.41
440$ 3.31
960$ 2.83
2400$ 2.63
NewarkEach 500$ 3.36
1000$ 2.86
5000$ 2.57

Description

General part information

182-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector
