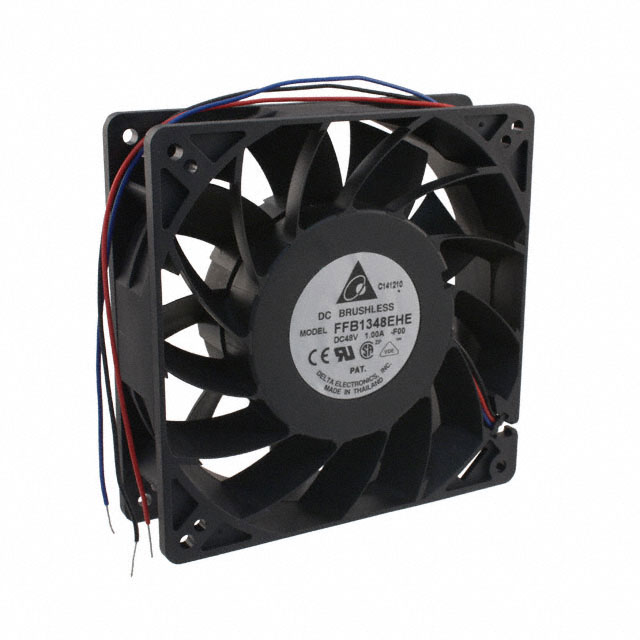

FFB1348EHE-F00

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	FFB1348EHE-F00

Air Flow	5.6 mł/min
Air Flow	200 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.67 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	32.16 W
RPM	3850 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	53 VDC
Voltage Range [Min]	28 V
Weight	499 g
Weight	1.1 lbs
Width [y]	38 mm

Part	Fan Type	Air Flow	Air Flow	Approval Agency	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Current Rating (Amps)	Features	Material - Blade	Voltage - Rated [custom]	Weight	Weight	Power (Watts)	Termination	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Noise	Bearing Type	RPM
Delta Electronics FFB1348EHE-F00	Tubeaxial	5.6 mł/min	200 CFM	CE CSA UL VDE	-10 °C	-10 °C	60 °C	60 °C	127 mm	127 mm	70000 Hrs	0.67 A	Locked Rotor Protection Speed Sensor (Tach)	Plastic	48 VDC	499 g	1.1 lbs	32.16 W	3 Wire Leads	38 mm	28 V	53 VDC	Plastic	59.5 dB	Ball	3850 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 127mm L x 127mm H Ball 200.0 CFM (5.60m³/min) 3 Wire Leads
