1-917658-5
ActiveTE Connectivity AMP Connectors

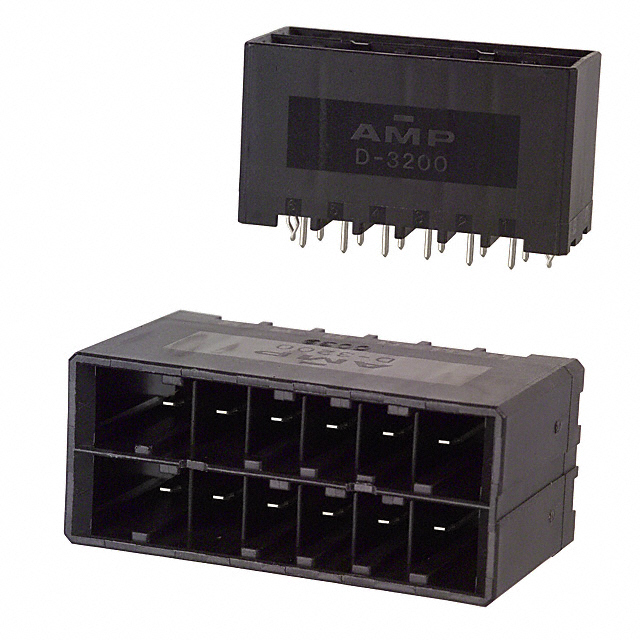

CONN HEADER VERT 12POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-917658-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 12POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-917658-5 | 917658 Series |
|---|---|---|
| Applications | General Purpose, Industrial | General Purpose, Industrial |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold, PdNi +Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 78.7 µin | 15 - 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm | 0.38 - 2 µm |
| Contact Length - Post [x] | 0.15 in | 0.15 in |
| Contact Length - Post [x] | 3.81 mm | 3.81 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height | 0.85 in | 0.85 in |
| Insulation Height | 21.59 mm | 21.59 mm |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Mated Stacking Heights [Max] [z] | 32.5 mm | 32.5 mm |
| Mated Stacking Heights [Min] [z] | 31 mm | 31 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 12 | 12 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 5.08 mm | 5.08 mm |
| Pitch - Mating | 0.2 in | 0.2 in |
| Row Spacing - Mating [x] | 7.62 mm | 7.62 mm |
| Row Spacing - Mating [x] | 0.3 in | 0.3 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 600 V | 600 V |
917658 Series
CONN HEADER VERT 12POS 5.08MM
| Part | Contact Finish - Mating | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Insulation Material | Voltage Rating | Insulation Height | Insulation Height | Number of Positions | Style | Number of Positions Loaded | Mounting Type | Material Flammability Rating | Insulation Color | Mated Stacking Heights [Min] [z] | Mated Stacking Heights [Max] [z] | Applications | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Connector Type | Contact Type | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Shape | Pitch - Mating | Pitch - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-917658-2 | Gold, PdNi +Gold | Detent Lock | 7.62 mm | 0.3 in | 105 ░C | -55 °C | 2 | Glass Filled, Polyester, Thermoplastic | 600 V | 0.85 in | 21.59 mm | 12 | Board to Board, Cable | All | Through Hole | UL94 V-0 | Black | 31 mm | 32.5 mm | General Purpose, Industrial | 0.15 in | 3.81 mm | Copper Alloy | Header | Tab | Tin | 15 µin | 0.38 µm | Shrouded - 4 Wall | Rectangular | 5.08 mm | 0.2 in | Solder |
TE Connectivity AMP Connectors 1-917658-5 | Detent Lock | 7.62 mm | 0.3 in | 105 ░C | -55 °C | 2 | Glass Filled, Polyester, Thermoplastic | 600 V | 0.85 in | 21.59 mm | 12 | Board to Board, Cable | All | Through Hole | UL94 V-0 | Black | 31 mm | 32.5 mm | General Purpose, Industrial | 0.15 in | 3.81 mm | Copper Alloy | Header | Tab | Tin | 78.7 µin | 2 µm | Shrouded - 4 Wall | Rectangular | 5.08 mm | 0.2 in | Solder | |
TE Connectivity AMP Connectors 3-917658-3 | Gold | Detent Lock | 7.62 mm | 0.3 in | 105 ░C | -55 °C | 2 | Glass Filled, Polyester, Thermoplastic | 600 V | 0.85 in | 21.59 mm | 12 | Board to Board, Cable | All | Through Hole | UL94 V-0 | Black | 31 mm | 32.5 mm | General Purpose, Industrial | 0.15 in | 3.81 mm | Copper Alloy | Header | Tab | Tin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Rectangular | 5.08 mm | 0.2 in | Solder |
TE Connectivity AMP Connectors 2-917658-3 | Gold | Detent Lock | 7.62 mm | 0.3 in | 105 ░C | -55 °C | 2 | Glass Filled, Polyester, Thermoplastic | 600 V | 0.85 in | 21.59 mm | 12 | Board to Board, Cable | All | Through Hole | UL94 V-0 | Black | 31 mm | 32.5 mm | General Purpose, Industrial | 0.15 in | 3.81 mm | Copper Alloy | Header | Tab | Tin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Rectangular | 5.08 mm | 0.2 in | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.86 | |
| 12 | $ 1.66 | |||
| 108 | $ 1.50 | |||
| 504 | $ 1.48 | |||
Description
General part information
917658 Series
Connector Header Through Hole 12 position 0.200" (5.08mm)
