3-917658-3

Active

TE Connectivity AMP Connectors

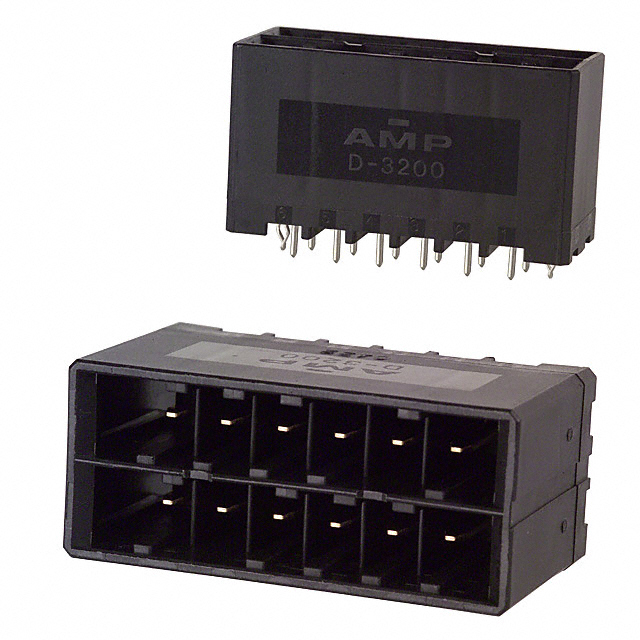

CONN HEADER VERT 12POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-917658-3

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 12POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5040	$ 4.34

Description

General part information

917658 Series

Connector Header Through Hole 12 position 0.200" (5.08mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-917658-3	917658 Series

Applications	General Purpose, Industrial	General Purpose, Industrial
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, PdNi +Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	15 - 78.7 µin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 2 µm
Contact Length - Post [x]	0.15 in	0.15 in
Contact Length - Post [x]	3.81 mm	3.81 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.85 in	0.85 in
Insulation Height	21.59 mm	21.59 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Mated Stacking Heights [Max] [z]	32.5 mm	32.5 mm
Mated Stacking Heights [Min] [z]	31 mm	31 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	12	12
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	5.08 mm	5.08 mm
Pitch - Mating	0.2 in	0.2 in
Row Spacing - Mating [x]	7.62 mm	7.62 mm
Row Spacing - Mating [x]	0.3 in	0.3 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 V	600 V

917658 Series

CONN HEADER VERT 12POS 5.08MM

Part	Contact Finish - Mating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Material	Voltage Rating	Insulation Height	Insulation Height	Number of Positions	Style	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Insulation Color	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Applications	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Connector Type	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Shape	Pitch - Mating	Pitch - Mating	Termination
TE Connectivity AMP Connectors 3-917658-2	Gold, PdNi +Gold	Detent Lock	7.62 mm	0.3 in	105 ░C	-55 °C	2	Glass Filled, Polyester, Thermoplastic	600 V	0.85 in	21.59 mm	12	Board to Board, Cable	All	Through Hole	UL94 V-0	Black	31 mm	32.5 mm	General Purpose, Industrial	0.15 in	3.81 mm	Copper Alloy	Header	Tab	Tin	15 µin	0.38 µm	Shrouded - 4 Wall	Rectangular	5.08 mm	0.2 in	Solder
TE Connectivity AMP Connectors 1-917658-5		Detent Lock	7.62 mm	0.3 in	105 ░C	-55 °C	2	Glass Filled, Polyester, Thermoplastic	600 V	0.85 in	21.59 mm	12	Board to Board, Cable	All	Through Hole	UL94 V-0	Black	31 mm	32.5 mm	General Purpose, Industrial	0.15 in	3.81 mm	Copper Alloy	Header	Tab	Tin	78.7 µin	2 µm	Shrouded - 4 Wall	Rectangular	5.08 mm	0.2 in	Solder
TE Connectivity AMP Connectors 3-917658-3	Gold	Detent Lock	7.62 mm	0.3 in	105 ░C	-55 °C	2	Glass Filled, Polyester, Thermoplastic	600 V	0.85 in	21.59 mm	12	Board to Board, Cable	All	Through Hole	UL94 V-0	Black	31 mm	32.5 mm	General Purpose, Industrial	0.15 in	3.81 mm	Copper Alloy	Header	Tab	Tin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Rectangular	5.08 mm	0.2 in	Solder
TE Connectivity AMP Connectors 2-917658-3	Gold	Detent Lock	7.62 mm	0.3 in	105 ░C	-55 °C	2	Glass Filled, Polyester, Thermoplastic	600 V	0.85 in	21.59 mm	12	Board to Board, Cable	All	Through Hole	UL94 V-0	Black	31 mm	32.5 mm	General Purpose, Industrial	0.15 in	3.81 mm	Copper Alloy	Header	Tab	Tin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Rectangular	5.08 mm	0.2 in	Solder
