5120FN 002500

Active

Belden Inc.

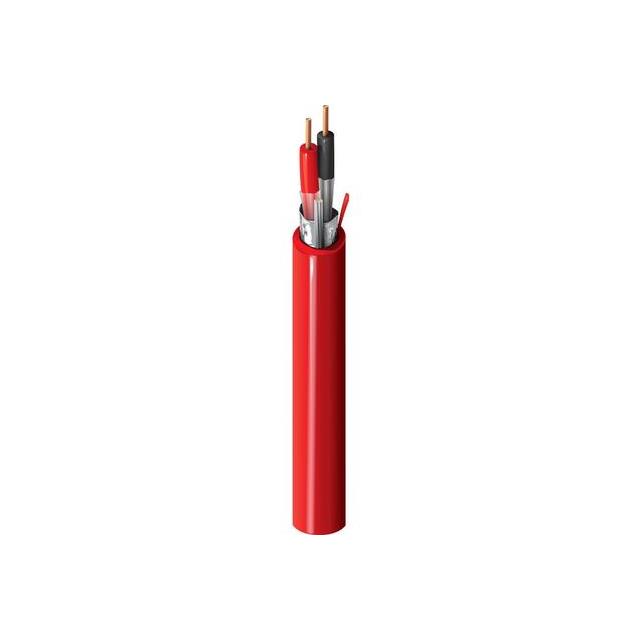

CABLE 2COND 14AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5120FN 002500

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.303 in
Jacket (Insulation) Diameter [diameter]	7.7 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Ratings	UL Style NPLF
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	150 V
Wire Gauge	13.5 AWG

Part	Wire Gauge	Features	Jacket Color	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Ratings	Conductor Insulation	Shield Coverage	Shield Material	Voltage	Conductor Strand	Shield Type	Length [x]	Length [x]	Number of Conductors	Usage	Jacket (Insulation) Material
Belden Inc. 5120FN 002500	13.5 AWG	Drain Wire Rip Cord	Red	Copper Bare	0.303 in	7.7 mm	1.067 mm	0.042 in	Multi-Conductor	UL Style NPLF	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	100 %	Aluminum	150 V	Solid	Foil	500 '	152.4 m	2	Alarm Safety	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.84

General part information

2 Conductor Multi-Conductor Cable Red 14 AWG Foil 500.0' (152.4m)
