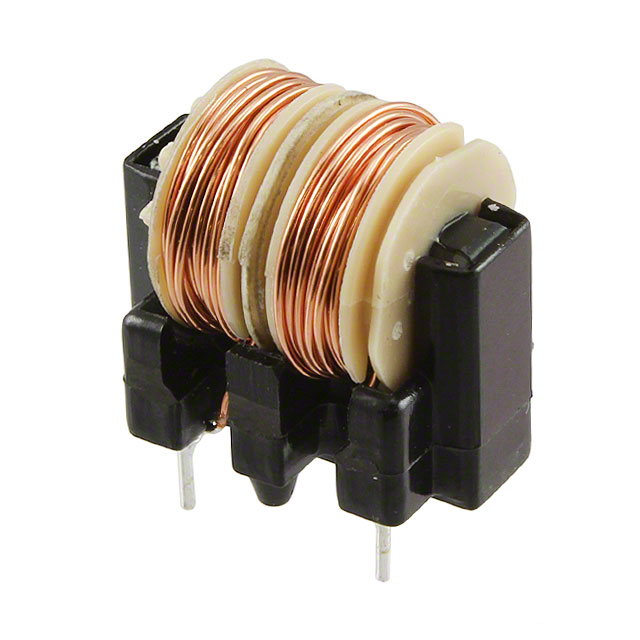

SSB11V-R13090 - SSB11V

SSB11V-R13090

Active
KEMET

V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue ENTechnical Data Sheet EN+3
SSB11V-R13090 - SSB11V

SSB11V-R13090

Active
KEMET

V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsManufacturer Catalogue ENTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSSB11V-R13090
Current Rating (Max) [Max]1.3 A
DC Resistance (DCR) (Max) [Max]380 mOhm
Filter TypePower Line
Height (Max) [Max]0.846 in
Height (Max) [Max]21.5 mm
Inductance @ Frequency9 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]130 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]0.866 in
Size / Dimension [x]22 mm
Size / Dimension [y]0.571 in
Size / Dimension [y]14.5 mm
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.07
10$ 1.66
600$ 1.23
1200$ 1.09
5400$ 1.00
10200$ 0.97
NewarkEach 500$ 1.21
1000$ 1.05
2500$ 0.94

Description

General part information

SSB11V Series

9 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 380mOhm
