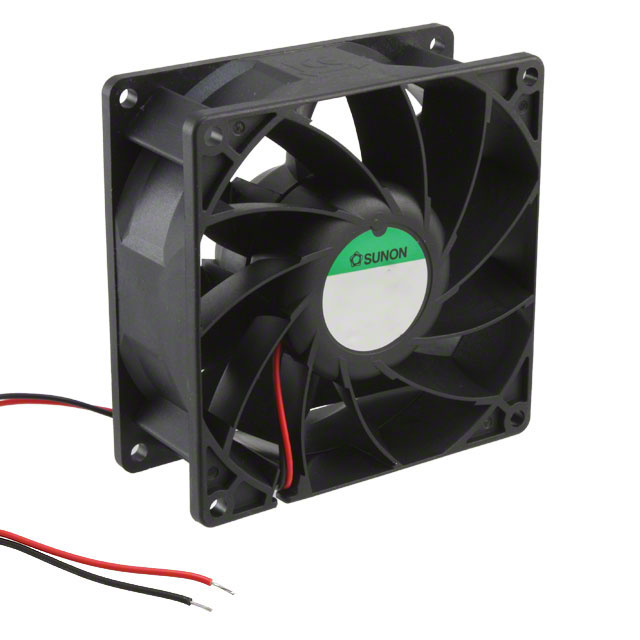

PMD1209PMB1-A.(2).GN

Active

Sunon Fans

FAN AXIAL 92X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 92X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

FAN AXIAL 92X38MM 12VDC WIRE

Part	Voltage - Rated	Power (Watts)	Width [y]	Noise	RPM	Current Rating (Amps)	Termination	Bearing Type	Fan Type	Features	Static Pressure	Static Pressure	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]
Sunon Fans PMD1209PMB2-A.(2).GN	12 VDC	8.5 W	38 mm	53.8 dB(A)	4400 RPM	0.71 A	2 Wire Leads	Ball	Tubeaxial	Auto Restart	0.56 in H2O	139.5 Pa	106.3 CFM	2.98 m³/min
Sunon Fans PMD1209PMB1-A.(2).GN	12 VDC	12.5 W	38 mm	57.6 dB(A)	4900 RPM	1.04 A	2 Wire Leads	Ball	Tubeaxial		0.71 in H2O	176.9 Pa	120.2 CFM	3.37 mł/min	70 °C	70 °C	-10 °C	-10 °C	CE, cUR, TUV, UL	0.419 lb	190.06 g	13.8 VDC	6 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 120.2 CFM (3.37m³/min) 2 Wire Leads

Technical documentation and resources

No documents available
