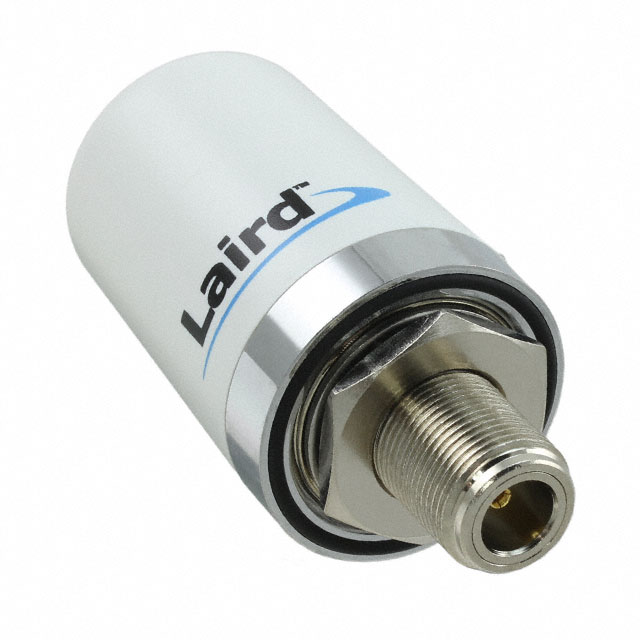

TRA806-17103P
ActiveTE Connectivity Raychem Cable Protection
RF ANT 850MHZ/900MHZ DOME N FEM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTRA806/17103P
TRA806-17103P
ActiveTE Connectivity Raychem Cable Protection
RF ANT 850MHZ/900MHZ DOME N FEM
Deep-Dive with AI
DocumentsTRA806/17103P
Technical Specifications
Parameters and characteristics for this part
| Specification | TRA806-17103P |
|---|---|
| Antenna Type | Dome |
| Applications | GPS, AMPS, UMTS, DCS, PCS, GSM |
| Frequency (Center/Band) | 2.4 GHz, 1.575 GHz, 1.8 GHz, 900 MHz, 850 MHz, 2.1 GHz, 1.9 GHz |
| Frequency Group | Wide Band |
| Frequency Range | 1.575 GHz |
| Frequency Range [Max] | 2.17 GHz, 2.5 GHz, 960 MHz |
| Frequency Range [Min] | 2.4 GHz, 1.71 GHz, 806 MHz |
| Gain | 5.1 dBic, 4.2 dBi, 5.8 dB, 3 dBi, 4.4 dBi, 5.9 dBi |
| Height (Max) | 58.42 mm |
| Height (Max) [Max] | 2.3 in |
| Number of Bands | 7 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | General ISM, Cellular |
| Termination | N Type Female |
| VSWR | 2, 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.73 | |
| 10 | $ 37.35 | |||
Description
General part information
TRA806 Series
RF ANTENNA AMPS, DCS, GPS, GSM, PCS, UMTS Dome N Type Female Panel Mount
