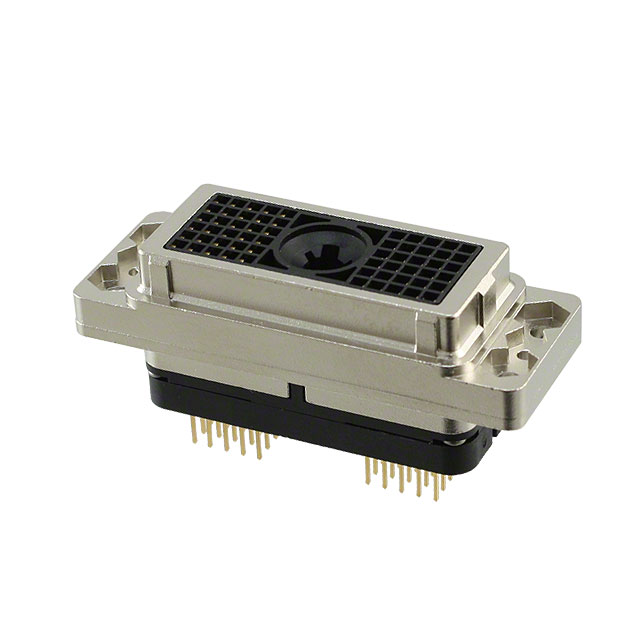

DLM3-60RW6B

Active

ITT Cannon, LLC

CONN RCPT 60POS PNL MNT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT 60POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DLM3-60RW6B

Color	Black
Connector Type	Hermaphroditic Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Actuating Camshaft Socket, Zero Insertion Force (ZIF), Shielding
Material Flammability Rating	UL94 V-0
Number of Columns	10
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Pitch [x]	Pitch [x]	Material Flammability Rating	Features	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	Number of Positions Loaded	Connector Type	Number of Columns
ITT Cannon, LLC DLM3-60RC-F	2.54 mm	0.1 in	UL94 V-0	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	0.51 µm	20 µin	Black	6	60	105 ░C	-55 °C	Gold	Solder	All	Hermaphroditic Contacts Receptacle	10
ITT Cannon, LLC DLM3-60RW6B	2.54 mm	0.1 in	UL94 V-0	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	1.27 µm	50 µin	Black	6	60	105 ░C	-55 °C	Gold	Solder	All	Hermaphroditic Contacts Receptacle	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Connector Receptacle, Hermaphroditic Contacts Panel Mount Black
