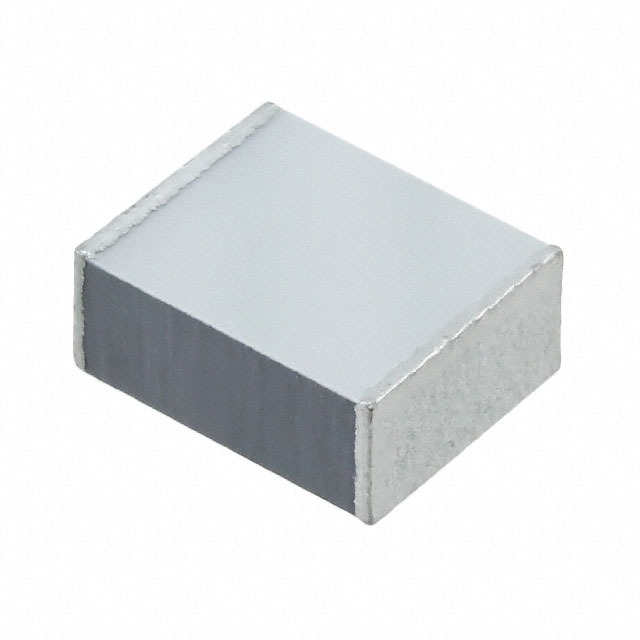

LDEMG3330KA5N00

Active

KEMET

CAP FILM 0.33UF 10% 400VDC 5040

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.33UF 10% 400VDC 5040

Technical Specifications

Parameters and characteristics for this part

Specification	LDEMG3330KA5N00

Applications	Automotive
Capacitance	0.33 µF
Dielectric Material	Polyethylene Naphthalate (PEN), Metallized - Stacked, Polyester
Features	High Temperature
Height - Seated (Max) [Max]	0.22 in
Height - Seated (Max) [Max]	5.6 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	127102 Metric
Package / Case	5040
Ratings	AEC-Q200
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	10.4 mm
Size / Dimension [y]	0.409 "
Termination	Solder Pads
Tolerance	10 %
Voltage Rating - AC	160 V
Voltage Rating - DC	400 V

Part	Voltage Rating - AC	Dielectric Material	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Ratings	Package / Case	Package / Case	Voltage Rating - DC	Features	Termination	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
KEMET LDEMG3330KA5N00	160 V	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	0.33 µF	0.22 in	5.6 mm	-55 °C	125 °C	Surface Mount	Automotive	AEC-Q200	127102 Metric	5040	400 V	High Temperature	Solder Pads	10 %	13 mm	10.4 mm	0.409 "	0.512 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.33 µF Film Capacitor 160V 400V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 5040 (127102 Metric)
