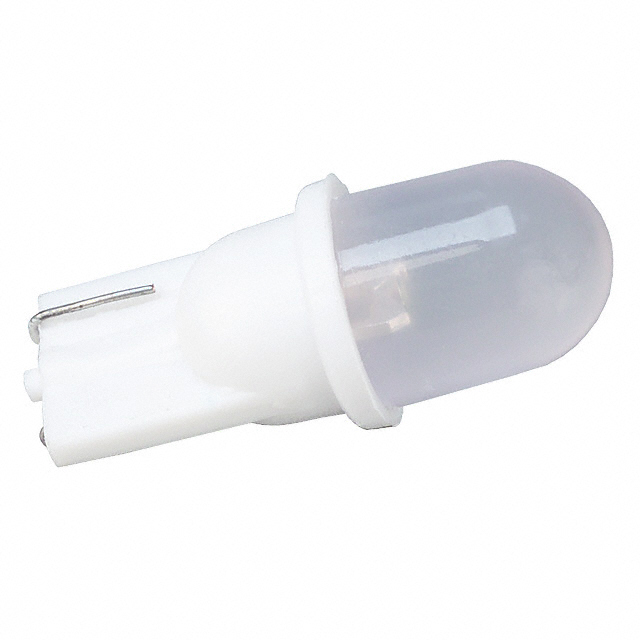

SSP-01TWB9W12

Active

Lumex Opto/Components Inc.

LED MINI WEDGE WHITE DIFFUSED

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED MINI WEDGE WHITE DIFFUSED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSP-01TWB9W12	SSP-01 Series

Applications	Indicator Lights, Incandescent Replacements	Indicator Lights, Incandescent Replacements
Base Type	Wedge	Wedge
Color	White	Green, White, Red
Configuration	Single	Single
Millicandela Rating	3300 mcd	2800 - 11000 mcd
Size / Dimension [diameter]	0.394 in	0.394 in
Size / Dimension [diameter]	10 mm	10 mm
Size / Dimension [z]	30 mm	30 mm
Size / Dimension [z]	1.181 "	1.181 "
Voltage - Forward (Vf) (Typ)	12 V	12 V
Wavelength	-	525 - 626 nm

LED MINI WEDGE 525NM GRN WTR CLR

Part	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Configuration	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Color	Wavelength	Base Type	Applications
Lumex Opto/Components Inc. SSP-01TWB2UPWB12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	9000 mcd	Green	525 nm	Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB2UPW12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	2800 mcd	Green	525 nm	Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB9WB12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	11000 mcd	White		Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB9W12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	3300 mcd	White		Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB6UWB12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	8000 mcd	Red	626 nm	Wedge	Incandescent Replacements, Indicator Lights

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lamp Replacement White Wedge 12V 0.394" Dia x 1.181" H (10.00mm x 30.00mm)

Technical documentation and resources

No documents available
