SSP-01TWB9WB12

Active

Lumex Opto/Components Inc.

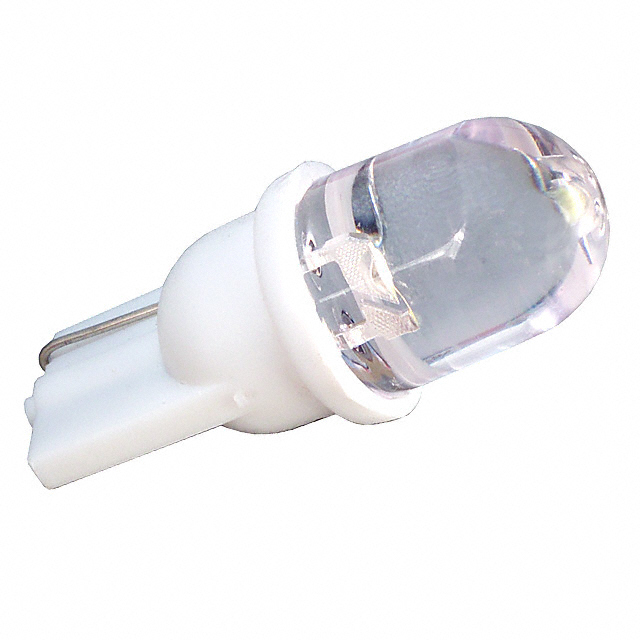

LED MINI WEDGE WHITE WATER CLEAR

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED MINI WEDGE WHITE WATER CLEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lamp Replacement White Wedge 12V 0.394" Dia x 1.181" H (10.00mm x 30.00mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SSP-01TWB9WB12	SSP-01 Series

Applications	Indicator Lights, Incandescent Replacements	Indicator Lights, Incandescent Replacements
Base Type	Wedge	Wedge
Color	White	Green, White, Red
Configuration	Single	Single
Millicandela Rating	11000 mcd	2800 - 11000 mcd
Size / Dimension [diameter]	0.394 in	0.394 in
Size / Dimension [diameter]	10 mm	10 mm
Size / Dimension [z]	30 mm	30 mm
Size / Dimension [z]	1.181 "	1.181 "
Voltage - Forward (Vf) (Typ)	12 V	12 V
Wavelength	-	525 - 626 nm

LED MINI WEDGE 525NM GRN WTR CLR

Part	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Configuration	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Color	Wavelength	Base Type	Applications
Lumex Opto/Components Inc. SSP-01TWB2UPWB12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	9000 mcd	Green	525 nm	Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB2UPW12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	2800 mcd	Green	525 nm	Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB9WB12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	11000 mcd	White		Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB9W12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	3300 mcd	White		Wedge	Incandescent Replacements, Indicator Lights
Lumex Opto/Components Inc. SSP-01TWB6UWB12	30 mm	0.394 in	1.181 "	10 mm	Single	12 V	8000 mcd	Red	626 nm	Wedge	Incandescent Replacements, Indicator Lights
