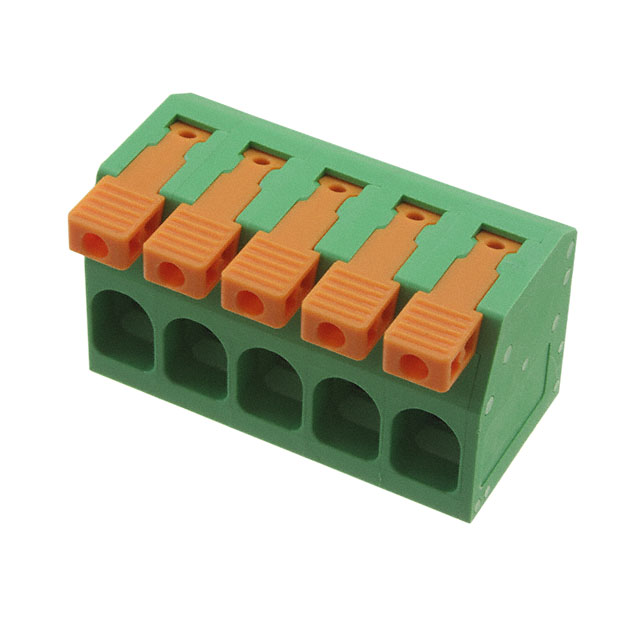

Specification	EB171A-05-H

Color	Green
Contact Material	Copper Alloy
Current	51 A
Features	Lever Actuated
Housing Material	Nylon, Polyamide, PA
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.394 in
Plating	Tin Plated
Positions Per Level	5
Voltage	600 V
Wire Gauge (AWG) (Max)	18 AWG
Wire Gauge (AWG) (Min)	4 AWG
Wire Termination	Spring Cage, Screwless, Tension Clamp

EB171A Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Plating	Contact Material	Wire Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Mating Orientation	Features	Number of Levels	Pitch	Positions Per Level	Mounting Type	Color	Voltage	Current
Adam Tech EB171A-05-H	-40 °C	105 °C	Nylon PA Polyamide	Tin Plated	Copper Alloy	Screwless Spring Cage Tension Clamp	18 AWG	4 AWG	Horizontal with Board	Lever Actuated	1	0.394 in	5	Through Hole	Green	600 V	51 A
Adam Tech EB171A-03-M	-40 °C	105 °C	Nylon PA Polyamide	Tin Plated	Copper Alloy	Screwless Spring Cage Tension Clamp	24 AWG	10 AWG	Horizontal with Board	Lever Actuated	1	0.295 in	3	Through Hole	Green	600 V	27 A
Adam Tech EB171A-06-H	-40 °C	105 °C	Nylon PA Polyamide	Tin Plated	Copper Alloy	Screwless Spring Cage Tension Clamp	18 AWG	4 AWG	Horizontal with Board	Lever Actuated	1	0.394 in	6	Through Hole	Green	600 V	51 A
