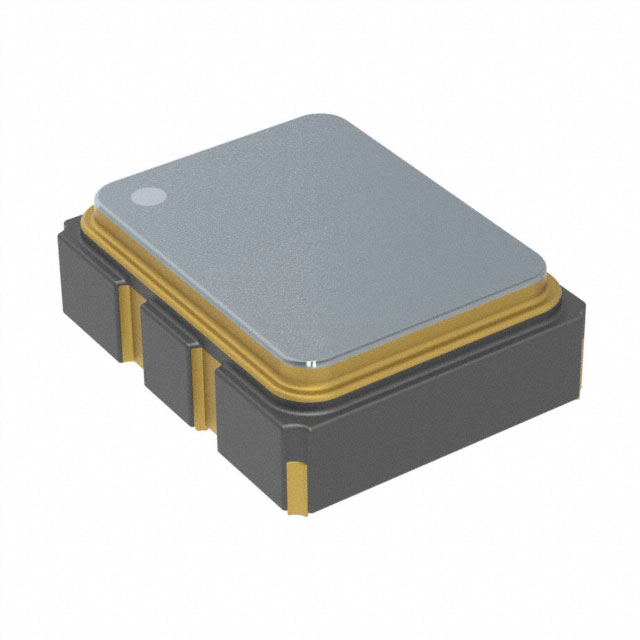

WX7021D0156.250000

Obsolete

Diodes Inc

XTAL OSC XO 156.2500MHZ LVPECL

Search across all available documentation for this part.

Obsolete

Diodes Inc

XTAL OSC XO 156.2500MHZ LVPECL

Technical Specifications

Parameters and characteristics for this part

Specification	WX7021D0156.250000

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	60 mA
Current - Supply (Max) [Max]	90 mA
Frequency	156.25 MHz
Frequency Stability	25 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL
Package / Case	6-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Type	Current - Supply (Max) [Max]	Current - Supply (Disable) (Max) [Max]	Frequency Stability	Frequency	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Output	Voltage - Supply	Base Resonator	Function
Diodes Inc WX7021D0100.000000	XO (Standard)	90 mA	60 mA	25 ppm	100 MHz	6-SMD No Lead	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	2 mm	0.079 in	85 °C	-40 °C	LVPECL	3.3 V	Crystal	Enable/Disable
Diodes Inc WX7021E0212.500000	XO (Standard)	90 mA	60 mA	50 ppm	212.5 MHz	6-SMD No Lead	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	2 mm	0.079 in	85 °C	-40 °C	LVPECL	3.3 V	Crystal	Enable/Disable
Diodes Inc WX7021D0156.250000	XO (Standard)	90 mA	60 mA	25 ppm	156.25 MHz	6-SMD No Lead	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	2 mm	0.079 in	85 °C	-40 °C	LVPECL	3.3 V	Crystal	Enable/Disable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
