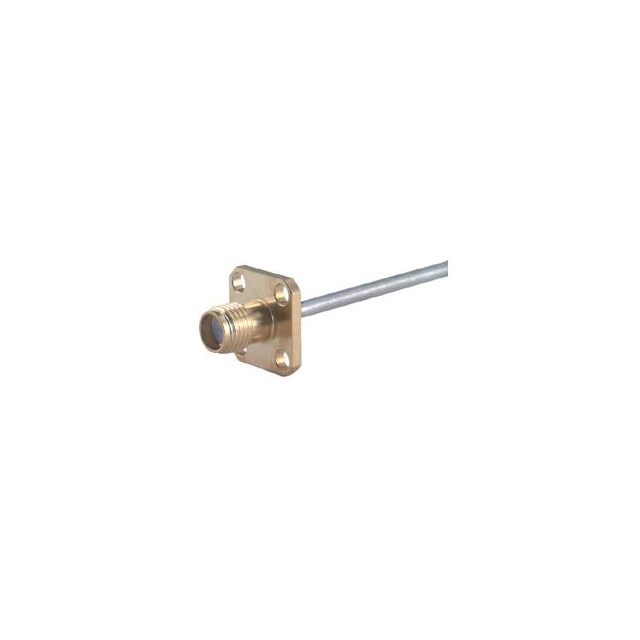

Specification	25_SMA-50-2-15/111_NE

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405
Cable Group Diameter (Semi Rigid)	0.086 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

25_SMA-50 Series

Part	Cable Group	Number of Ports	Mounting Feature	Impedance	Connector Style	Shield Termination	Fastening Type	Contact Termination	Connector Type	Housing Color	Frequency - Max	Mounting Type	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Dielectric Material	Center Contact Plating	Mating Cycles	Body Material	Cable Group Size	Cable Group Diameter (Semi Rigid)
Huber+Suhner, Inc. 25_SMA-50-2-6/111_NE	RD-316	1	Flange	50 Ohm	SMA	Crimp	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper
Huber+Suhner, Inc. 25_SMA-50-1-4/111_NE	Semi Rigid	1	Flange	50 Ohm	SMA	Solder	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	125 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper	0.047 "
Huber+Suhner, Inc. 25_SMA-50-2-5/111_NE	188 316 RG-174	1	Flange	50 Ohm	SMA	Crimp	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper
Huber+Suhner, Inc. 25_SMA-50-2-15/111_NE	RG-405	1	Flange	50 Ohm	SMA	Solder	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper		0.086 in
Huber+Suhner, Inc. 25_SMA-50-3-25/111_NE	RG-141	1	Flange	50 Ohm	SMA	Solder	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper
Huber+Suhner, Inc. 25_SMA-50-2-5/111_NH	188 316 RG-174	1	Flange	50 Ohm	SMA	Crimp	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper
Huber+Suhner, Inc. 25_SMA-50-1-4/111_NH	Semi Rigid	1	Flange	50 Ohm	SMA	Solder	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	125 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper	0.047 "
Huber+Suhner, Inc. 25_SMA-50-1-2/111_NE	Semi Rigid	1	Flange	50 Ohm	SMA	Solder	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper	0.047 "
Huber+Suhner, Inc. 25_SMA-50-3-15/111_NH	RG-141	1	Flange	50 Ohm	SMA	Solder	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper
Huber+Suhner, Inc. 25_SMA-50-3-15/111_NE	RG-141	1	Flange	50 Ohm	SMA	Solder	Threaded	Solder	Female Socket Jack	Gold	18 GHz	Panel Mount	Beryllium Copper	-65 °C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Beryllium Copper
