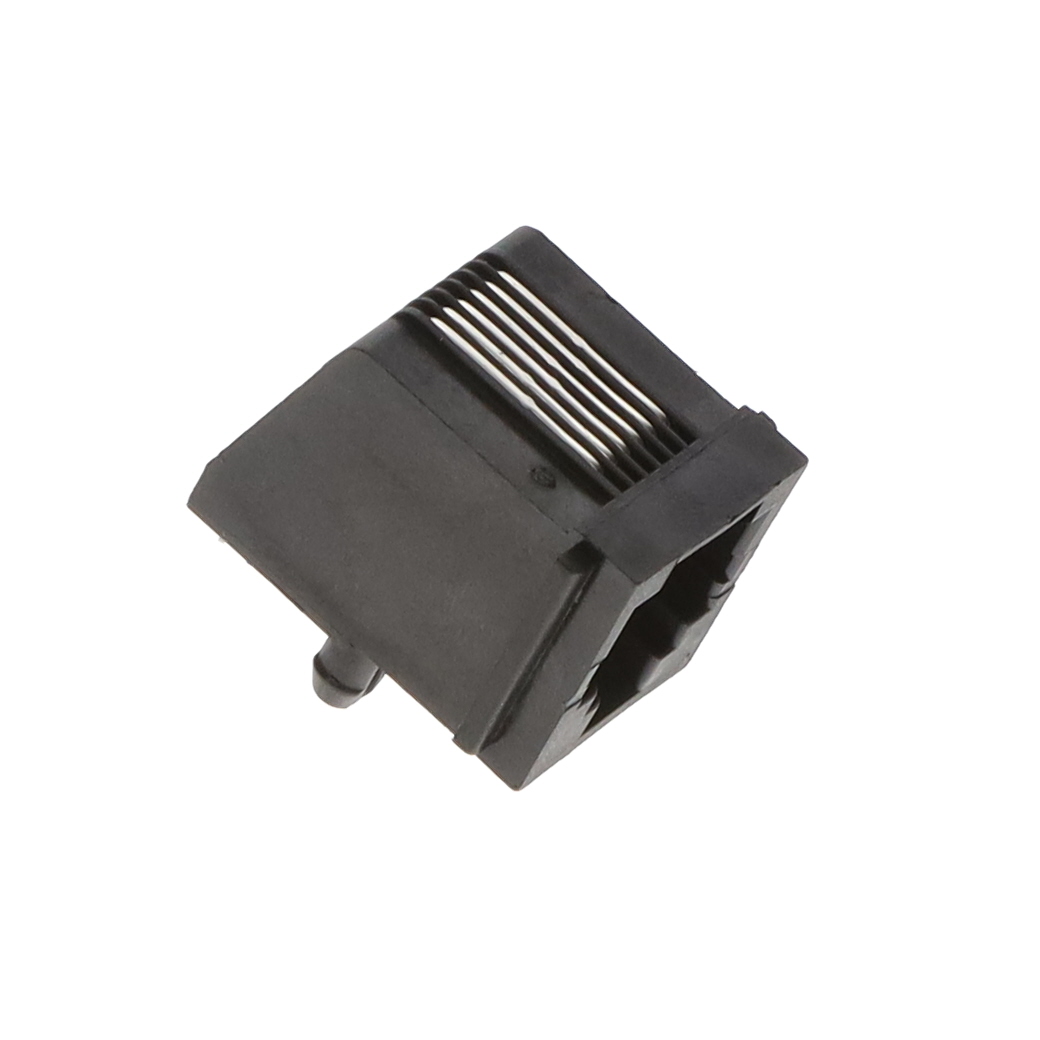

Specification	GDX-A-66

Connector Type	Jack, RJ25, RJ11, RJ12, RJ14
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stops
Housing Material	PBT, Polybutylene Terephthalate
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Contacts	6
Number of Ports	1
Number of Positions	6
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	90 °
Orientation Direction	Right
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

GDX-A Series

Part	Features	LED Color	Number of Ports	Number of Rows	Connector Type	Tab Direction	Shielding	Number of Contacts	Number of Positions	Mounting Type	Contact Material	Termination	Contact Finish	Orientation Angle	Orientation Direction	Housing Material	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)
Kycon, Inc. GDX-A-66	Board Lock Panel Stops	Does Not Contain LED	1	1	Jack RJ11 RJ12 RJ14 RJ25	Down	Unshielded	6	6	Through Hole	Phosphor Bronze	Solder	Gold	90 °	Right	PBT Polybutylene Terephthalate	0	Flash	Flash	-40 °C	85 °C
