1857A Series

Part	Dielectric Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Material	Dielectric Material	Shield Coverage	Velocity of Propagation (VoP)	Shield Material	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Wire Gauge	Cable Group	Jacket Color	Impedance	Conductor Strand Count	Conductor Strand Gauge	Shield Type	Cable Type	Length
Belden Inc. 1857A 004500	0.143 in	-30 °C	75 °C	Bare Copper	Foam Polyethylene (FPE)	95 %	79 %	Bare Copper	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Yellow	75 Ohm	19	34 AWG	Braid	Triaxial	500 ft
Belden Inc. 1857A B591000	0.143 in	-30 °C	75 °C	Bare Copper	Foam Polyethylene (FPE)	95 %	79 %	Bare Copper	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Black	75 Ohm	19	34 AWG	Braid	Triaxial	1000 ft

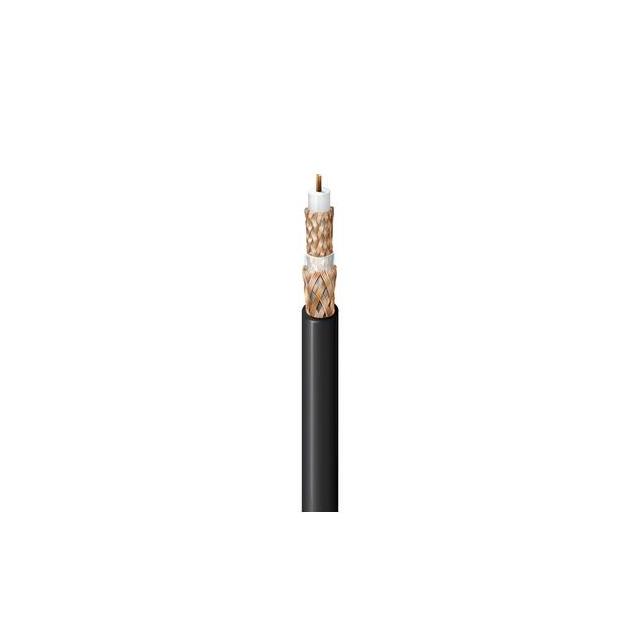

Belden Inc. 1857A 0061000	0.143 in	-30 °C	75 °C	Bare Copper	Foam Polyethylene (FPE)	95 %	79 %	Bare Copper	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Blue	75 Ohm	19	34 AWG	Braid	Triaxial	1000 ft
Belden Inc. 1857A 0021000	0.143 in	-30 °C	75 °C	Bare Copper	Foam Polyethylene (FPE)	95 %	79 %	Bare Copper	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Red	75 Ohm	19	34 AWG	Braid	Triaxial	1000 ft
Belden Inc. 1857A 0041000	0.143 in	-30 °C	75 °C	Bare Copper	Foam Polyethylene (FPE)	95 %	79 %	Bare Copper	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Yellow	75 Ohm	19	34 AWG	Braid	Triaxial	1000 ft
Belden Inc. 1857A 0071000	0.143 in	-30 °C	75 °C	Bare Copper	Foam Polyethylene (FPE)	95 %	79 %	Bare Copper	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Violet	75 Ohm	19	34 AWG	Braid	Triaxial	1000 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
