11_MCX-50-1-13/111_NH

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_MCX-50-1-13/111_NH

Active

Huber+Suhner, Inc.

11_MCX-50-1-13/111_NH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.26
		10	$ 5.69
		25	$ 5.39
		50	$ 5.26
		100	$ 5.01
		250	$ 4.38
		500	$ 4.26
		1000	$ 3.63
		2500	$ 3.38

Description

General part information

11_MCX-50 Series

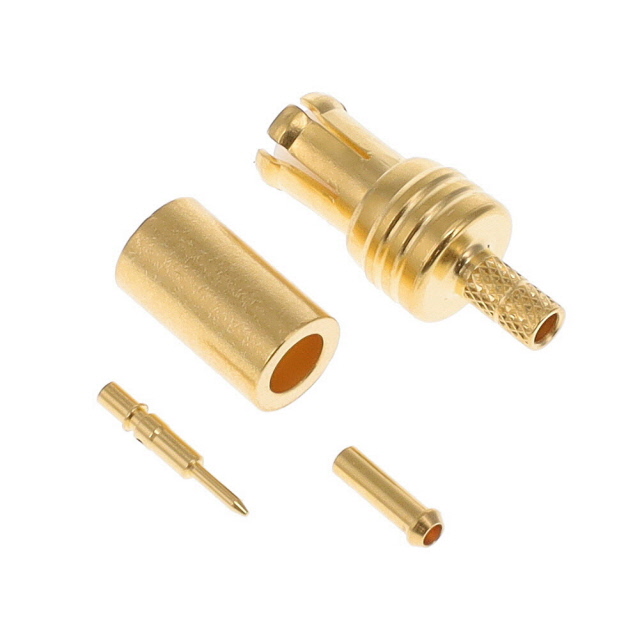

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_MCX-50-1-13/111_NH	11_MCX-50 Series

Body Finish	Gold	Gold, White Bronze
Body Material	Brass	Brass, Bronze, Beryllium Copper
Cable Group	196	0.047 - 196 in
Cable Group	RG-178	RG-405, RD-316, RG-174, 188, 316, Semi Rigid, RG-178, RG-316
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	MCX	MCX, MBX
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-65 - -55 ░C
Shield Termination	Crimp	Solder, Crimp
Voltage Rating	170 V	170 - 330 V

11_MCX-50 Series

11_MCX-50-2-19/111_NH

Part	Fastening Type	Frequency - Max [Max]	Center Contact Material	Dielectric Material	Voltage Rating	Cable Group	Body Finish	Shield Termination	Contact Termination	Mounting Type	Number of Ports	Center Contact Plating	Impedance	Housing Color	Connector Style	Body Material	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Cable Group
Huber+Suhner, Inc. 11_MCX-50-2-19/111_NH	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	RG-405	Gold	Solder	Solder	Free Hanging (In-Line)	1	Gold	50 Ohms	Gold	MCX	Brass	500	155 °C	-65 ░C	Male Pin, Plug
Huber+Suhner, Inc. 11_MBX-50-2-1/113_NH	Snap-On	6000 MHz	Beryllium Copper	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	330 VDC	RD-316	Gold	Crimp	Crimp	Free Hanging (In-Line)	1	Gold	50 Ohms	Gold	MBX	Brass, Bronze		155 °C	-55 °C	Male Pin, Plug
Huber+Suhner, Inc. 11_MCX-50-2-16/111_NH	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	188, 316, RG-174	Gold	Crimp	Crimp	Free Hanging (In-Line)	1	Gold	50 Ohms	Gold	MCX	Brass	500	155 °C	-55 °C	Male Pin, Plug
Huber+Suhner, Inc. 11_MCX-50-1-14/111_NE	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	Semi Rigid	Gold	Solder	Solder	Free Hanging (In-Line)	1	Gold	50 Ohms	Gold	MCX	Beryllium Copper	500	155 °C	-55 °C	Male Pin, Plug	0.047 in
Huber+Suhner, Inc. 11_MCX-50-2-15/133_NH	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	RD-316	White Bronze	Crimp	Crimp	Free Hanging (In-Line)	1	Gold	50 Ohms	Silver	MCX	Beryllium Copper	500	155 °C	-55 °C	Male Pin, Plug
Huber+Suhner, Inc. 11_MCX-50-2-16/133_NH	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	188, 316, RG-174	White Bronze	Crimp	Crimp	Free Hanging (In-Line)	1	Gold	50 Ohms	Silver	MCX	Beryllium Copper	500	155 °C	-55 °C	Male Pin, Plug
Huber+Suhner, Inc. 11_MCX-50-2-19/111_NE	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	RG-405	Gold	Solder	Solder	Free Hanging (In-Line)	1	Gold	50 Ohms	Gold	MCX	Beryllium Copper	500	155 °C	-65 ░C	Male Pin, Plug
Huber+Suhner, Inc. 11_MCX-50-1-13/133_NH	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	RG-178	White Bronze	Crimp	Crimp	Free Hanging (In-Line)	1	Gold	50 Ohms	Silver	MCX	Beryllium Copper	500	155 °C	-55 °C	Male Pin, Plug	196
Huber+Suhner, Inc. 11_MCX-50-1-13/111_NH	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	RG-178	Gold	Crimp	Crimp	Free Hanging (In-Line)	1	Gold	50 Ohms	Gold	MCX	Brass	500	155 °C	-55 °C	Male Pin, Plug	196
Huber+Suhner, Inc. 11_MCX-50-2-15/111_NH	Snap-On	6000 MHz	Brass	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	170 V	RG-316	Gold	Crimp	Crimp	Free Hanging (In-Line)	1	Gold	50 Ohms	Gold	MCX	Brass	500	155 °C	-55 °C	Male Pin, Plug
