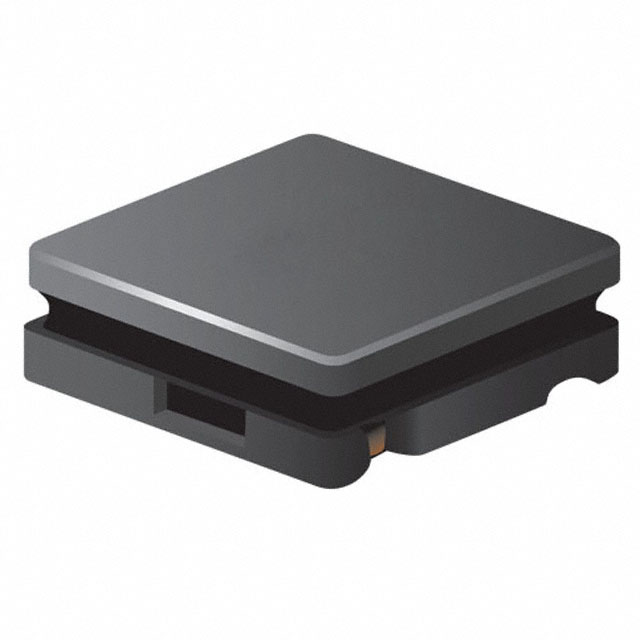

SRN3010-1R0Y

Obsolete

Bourns Inc.

FIXED IND 1UH 2.3A 63 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

SRN3010-1R0Y

Obsolete

Bourns Inc.

FIXED IND 1UH 2.3A 63 MOHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRN3010-1R0Y

Current - Saturation (Isat)	2.3 A
DC Resistance (DCR) [Max]	63 mOhm
Frequency - Self Resonant	140 MHz
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Inductance	1 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	1212
Package / Case	3030 Metric
Q @ Freq	7, 7.96 MHz
Shielding	Shielded
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3010
Tolerance	30 %
Type	Wirewound, Drum Core

SRN3010 Series

Part	Tolerance	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Q @ Freq	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Material - Core	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Mounting Type	Shielding	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Current - Saturation (Isat)	Package / Case	Package / Case	DC Resistance (DCR)
Bourns Inc. SRN3010C-8R2M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	10 100 kHz	3010	125 °C	-40 °C	8.2 µH	Ferrite	45 MHz	396 mOhm	Surface Mount	Shielded	1 A	0.039 "	1 mm	100 kHz	1.3 A	1212	3030 Metric
Bourns Inc. SRN3010C-3R3M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	10 100 kHz	3010	125 °C	-40 °C	3.3 µH	Ferrite	86 MHz	156 mOhm	Surface Mount	Shielded	2.2 A	0.039 "	1 mm	100 kHz	1.4 A	1212	3030 Metric
Bourns Inc. SRN3010C-1R2M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	10 100 kHz	3010	125 °C	-40 °C	1.2 µH	Ferrite	135 MHz	72 mOhm	Surface Mount	Shielded	3.1 A	0.039 "	1 mm	100 kHz	2.1 A	1212	3030 Metric
Bourns Inc. SRN3010-1R5Y	30 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	7 7.96 MHz	3010	125 °C	-40 °C	1.5 µH	Ferrite	110 MHz	91 mOhm	Surface Mount	Shielded	2 A	0.039 "	1 mm	100 kHz	1.65 A	1212	3030 Metric
Bourns Inc. SRN3010-6R8M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	7 7.96 MHz	3010	125 °C	-40 °C	6.8 µH	Ferrite	50 MHz	312 mOhm	Surface Mount	Shielded	1.3 A	0.039 "	1 mm	100 kHz	700 mA	1212	3030 Metric
Bourns Inc. SRN3010-1R0Y	30 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	7 7.96 MHz	3010	125 °C	-40 °C	1 µH	Ferrite	140 MHz	63 mOhm	Surface Mount	Shielded		0.039 "	1 mm	100 kHz	2.3 A	1212	3030 Metric
Bourns Inc. SRN3010C-1R0M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	10 100 kHz	3010	125 °C	-40 °C	1 µH	Ferrite	145 MHz	67 mOhm	Surface Mount	Shielded	3.4 A	0.039 "	1 mm	100 kHz	2.4 A	1212	3030 Metric
Bourns Inc. SRN3010-100M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	2.52 MHz 11	3010	125 °C	-40 °C	10 µH	Ferrite	40 MHz		Surface Mount	Shielded	900 mA	0.039 "	1 mm	100 kHz	600 mA	1212	3030 Metric	420 mOhm
Bourns Inc. SRN3010-2R2M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	7 7.96 MHz	3010	125 °C	-40 °C	2.2 µH	Ferrite	85 MHz	96 mOhm	Surface Mount	Shielded	1.9 A	0.039 "	1 mm	100 kHz	1.3 A	1212	3030 Metric
Bourns Inc. SRN3010-470M	20 %	Drum Core Wirewound	0.118 in	3 mm	3 mm	0.118 in	2.52 MHz 20	3010	125 °C	-40 °C	47 µH	Ferrite	16 MHz	1.92 Ohm	Surface Mount	Shielded	350 mA	0.039 "	1 mm	100 kHz	280 mA	1212	3030 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SRN3010 Series

1 µH Shielded Drum Core, Wirewound Inductor 2.3 A 63mOhm Max 1212 (3030 Metric)
