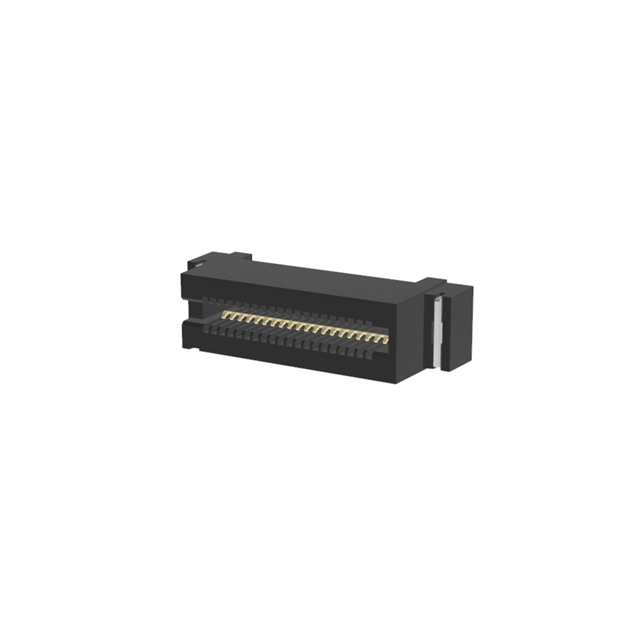

MBB-VM-20-62-30-ST

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 40POS 0.031

Search across all available documentation for this part.

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 40POS 0.031

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MBB-VM-20-62-30-ST	MBB-VM-20 Series

Card Thickness	0.062 in	0.062 - 0.093 in
Card Thickness	1.57 mm	1.57 - 2.36 mm
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Cantilever	Cantilever
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Gender	Female	Female
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	40
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.8 mm	0.8 mm
Pitch [x]	0.031 in	0.031 in
Read Out	Dual	Dual
Termination	Solder	Solder

CONN EDGE DUAL FMALE 40POS 0.031

Part	Contact Finish	Card Type	Contact Type	Color	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Number of Positions	Features	Pitch [x]	Pitch [x]	Termination	Number of Rows	Mounting Type
CarlisleIT MBB-VM-20-62-30-ST	Gold	Non Specified - Dual Edge	Cantilever	Black	0.062 in	1.57 mm	0.76 Ám	30 Áin	Female	-55 °C	125 °C	Dual	40	Board Guide, Solder Retention	0.8 mm	0.031 in	Solder	2	Surface Mount
CarlisleIT MBB-VM-20-93-30-00	Gold	Non Specified - Dual Edge	Cantilever	Black	0.093 in	2.36 mm	0.76 Ám	30 Áin	Female	-55 °C	125 °C	Dual	40	Board Guide	0.8 mm	0.031 in	Solder	2	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.42

General part information

40 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black

Technical documentation and resources

No documents available
