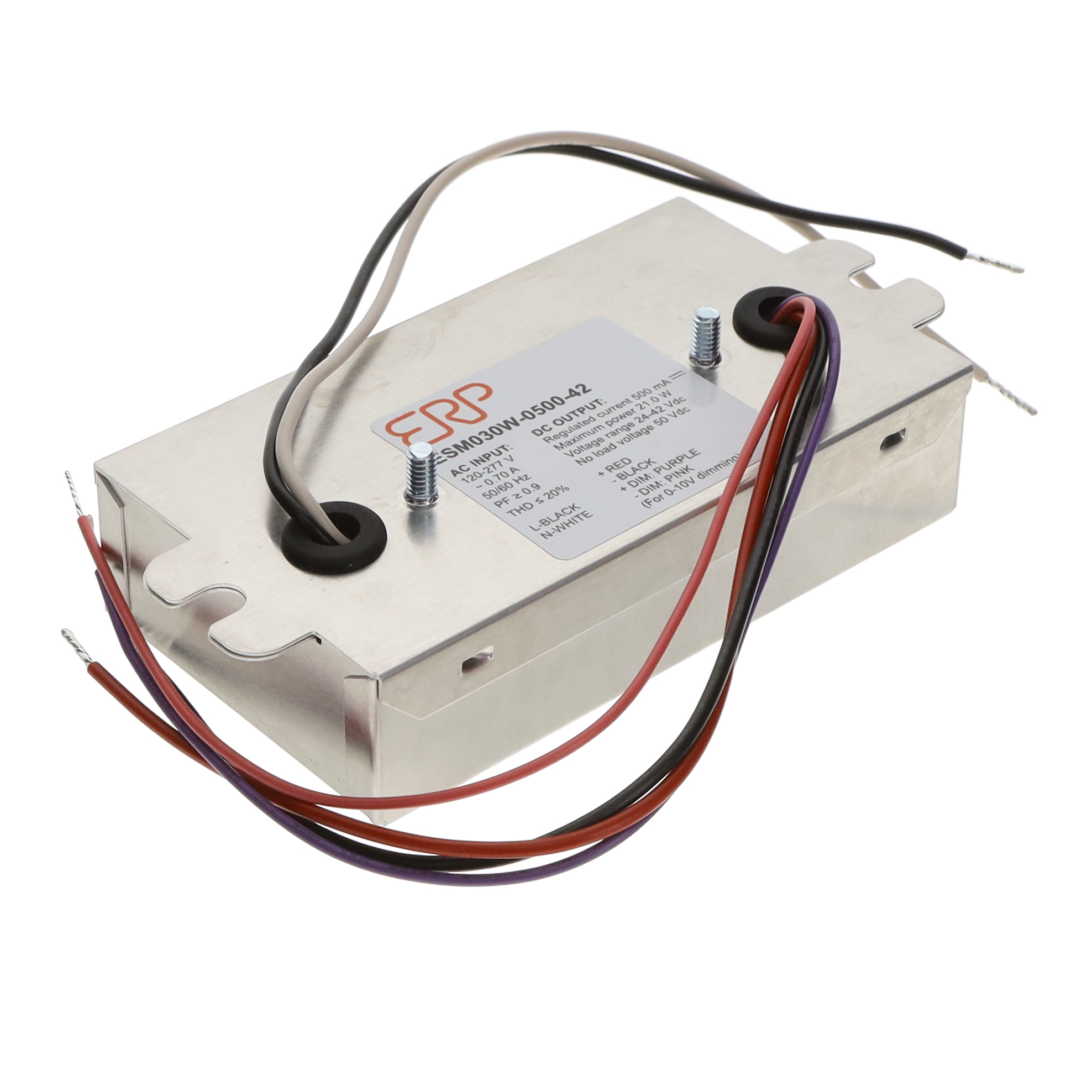

ESM030W-0500-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 500MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESM030W-0500-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 500MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.55
		5	$ 28.94
		10	$ 27.34
		25	$ 26.13
		50	$ 24.92
		100	$ 24.12
		250	$ 22.11

Description

General part information

ESM030W Series

500mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESM030W-0500-42	ESM030W Series

Approval Agency	CB, cUL, FC, UL, CE, cRUcs	CB, cUL, FC, UL, CE, cRUcs
Current - Output (Max) [Max]	500 mA	1.75 - 900 mA
Dimming	ELV, TRIAC	ELV, Analog, TRIAC
Efficiency	87 %	87 %
Features	OTP, SCP, OCP	OTP, SCP, OCP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature	-	194 °F
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power (Watts)	21 W	13 - 29 W
Ratings	NEMA 410, IP20	IP20, NEMA 410, IP64
Size / Dimension	-	4.19 "
Size / Dimension	-	2.37 in
Size / Dimension	-	0.99 "
Size / Dimension [x]	106.7 mm, 4.2 in	4.2 - 106.7 mm
Size / Dimension [y]	60.3 mm, 2.37 in	2.37 - 60.3 mm
Size / Dimension [z]	0.99 in, 25.2 mm	0.99 - 25.2 mm
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current
Voltage - Input (Max) [Max]	277 VAC	277 VAC
Voltage - Input (Min) [Min]	120 VAC	120 VAC
Voltage - Output [Max]	42 V	14 - 42 V
Voltage - Output [Min]	28 V	8 - 28 V
Weight	252 g	252 g
Weight	0.556 lb	0.556 lb

ESM030W Series

LED DRIVER CC AC/DC 120-277V 700

Part	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output [Min]	Voltage - Output [Max]	Mounting Type	Features	Voltage - Input (Max) [Max]	Termination Style	Number of Outputs	Dimming	Type	Operating Temperature	Efficiency	Voltage - Input (Min) [Min]	Topology	Ratings	Current - Output (Max) [Max]	Approval Agency	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]
ERP Power, LLC ESM030W-0700-42-Z1	29 W	106.4 mm	25.1 mm	60.2 mm	4.19 "	2.37 in	0.99 "	24 V	42 V	Chassis Mount	OCP, OTP, SCP	277 VAC	Wire Leads	1	Analog, ELV, TRIAC	Constant Current	194 °F	87 %	120 VAC	AC DC Converter	IP20	700 mA
ERP Power, LLC ESM030W-0550-42	23 W	4.2 in, 106.7 mm	0.99 in, 25.2 mm	2.37 in, 60.3 mm				28 V	42 V	Chassis Mount	OCP, OTP, SCP	277 VAC	Wire Leads	1	ELV, TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20, NEMA 410	550 mA	CB, CE, cRUcs, cUL, FC, UL	252 g	0.556 lb	-30 ░C	90 °C
ERP Power, LLC ESM030W-0700-42	29 W	4.2 in, 106.7 mm	0.99 in, 25.2 mm	2.37 in, 60.3 mm				28 V	42 V	Chassis Mount	OCP, OTP, SCP	277 VAC	Wire Leads	1	ELV, TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20, NEMA 410	700 mA	CB, CE, cRUcs, cUL, FC, UL	252 g	0.556 lb	-30 ░C	90 °C
ERP Power, LLC ESM030W-0900-26	23 W	4.2 in, 106.7 mm	0.99 in, 25.2 mm	2.37 in, 60.3 mm				19 V	26 V	Chassis Mount	OCP, OTP, SCP	277 VAC	Wire Leads	1	ELV, TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20, NEMA 410	900 mA	CB, CE, cRUcs, cUL, FC, UL	252 g	0.556 lb	-30 ░C	90 °C
ERP Power, LLC ESM030W-0500-42	21 W	4.2 in, 106.7 mm	0.99 in, 25.2 mm	2.37 in, 60.3 mm				28 V	42 V	Chassis Mount	OCP, OTP, SCP	277 VAC	Wire Leads	1	ELV, TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20, NEMA 410	500 mA	CB, CE, cRUcs, cUL, FC, UL	252 g	0.556 lb	-30 ░C	90 °C
ERP Power, LLC ESM030W-1750-14	13 W	4.2 in, 106.7 mm	0.99 in, 25.2 mm	2.37 in, 60.3 mm				8 V	14 V	Chassis Mount	OCP, OTP, SCP	277 VAC	Wire Leads	1	ELV, TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20, IP64, NEMA 410	1.75 A	CB, CE, cRUcs, cUL, FC, UL	252 g	0.556 lb	-30 ░C	90 °C
