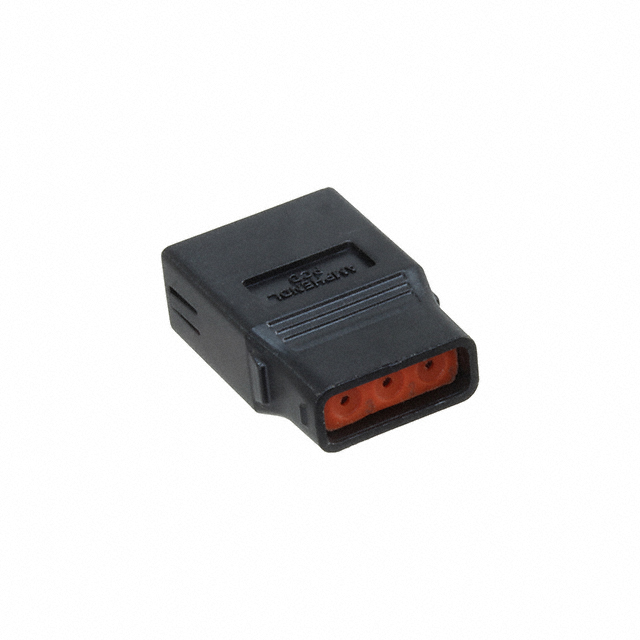

SQR320151

Active

AMPHENOL PCD

CONN PLUG 3POS 20AWG

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG 3POS 20AWG

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG 3POS 20AWG

Part	Number of Rows	Wire Gauge	Contact Type	Fastening Type	Connector Type	Wire Type	Mounting Type	Color	Features	Number of Positions	Note	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Termination
AMPHENOL PCD SQR320151	1	20 AWG	Female Socket	Latch Lock	Plug	Discrete	Free Hanging (In-Line)	Black	IP67
AMPHENOL PCD SQR320211-3	1	20 AWG	Male Pin	Latch Lock	Receptacle	Discrete	Free Hanging (In-Line)	Black	IP67
AMPHENOL PCD SQR322110-4	1		Female Socket	Latch Lock	Plug		Free Hanging (In-Line)		IP67	4	Contacts Not Included	-65 ░C	150 °C	Polyetherimide (PEI)	Crimp
AMPHENOL PCD SQR322211-4	1	22 AWG	Male Pin	Latch Lock	Receptacle	Discrete	Free Hanging (In-Line)	Black	IP67	4
AMPHENOL PCD SQR322111-4	1	22 AWG	Female Socket	Latch Lock	Plug	Discrete	Free Hanging (In-Line)	Black	IP67	4
AMPHENOL PCD SQR320200	1		Male Pin	Latch Lock	Receptacle		Free Hanging (In-Line)		IP67		Contacts Not Included	-65 ░C	150 °C	Polyetherimide (PEI)	Crimp
AMPHENOL PCD SQR320210-3	1		Male Pin	Latch Lock	Receptacle		Free Hanging (In-Line)		IP67		Contacts Not Included	-65 ░C	150 °C	Polyetherimide (PEI)	Crimp
AMPHENOL PCD SQR320110-3	1		Female Socket	Latch Lock	Plug		Free Hanging (In-Line)		IP67		Contacts Not Included	-65 ░C	150 °C	Polyetherimide (PEI)	Crimp
AMPHENOL PCD SQR322210-4	1		Male Pin	Latch Lock	Receptacle		Free Hanging (In-Line)		IP67	4	Contacts Not Included	-65 ░C	150 °C	Polyetherimide (PEI)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Rectangular Plug Connector 20 AWG
