General part information

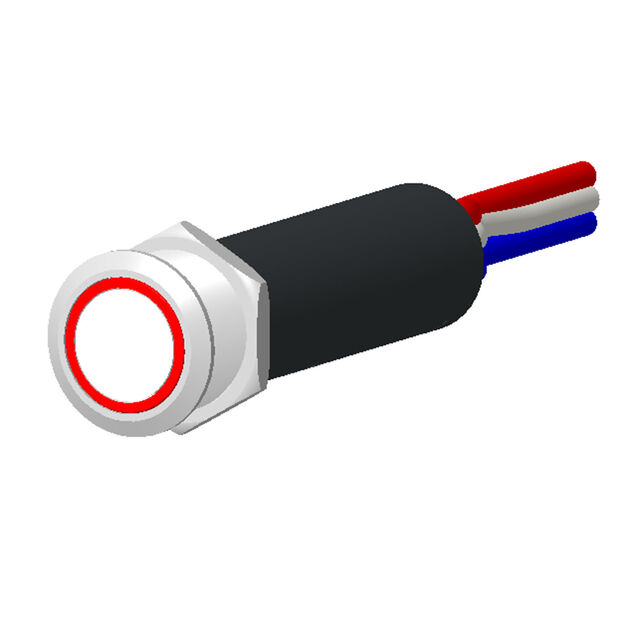

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Technical documentation and resources
Parameters and characteristics for this part
| Specification | AVH1-1C36-RAEA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 5 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Blue/Red, LED |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 12 V |
PUSHBUTTON SWITCHES SWITCH PUSHBUTTON
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Switch Function | Actuator Marking | Actuator Type | Voltage Rating - DC | Circuit | Type | Ingress Protection | Current Rating (Amps) | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies AVH1-1C36-RAEA | Panel Mount, Front | 70 °C | -30 ░C | Wire Leads | Blue/Red, LED | 19 mm | Silver | On-Mom | No Marking | Button, Flush, Round | 12 V | SPDT | Anti-Vandal, Illuminated | IP67 - Dust Tight, Waterproof | 5 A | 50000 Cycles |
