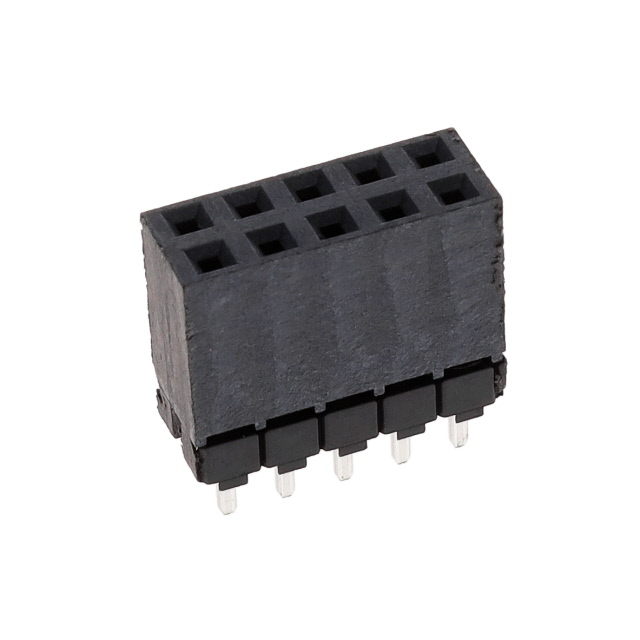

ESW-105-12-T-D

Active

Samtec Inc.

CONN SOCKET 10POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESW Datasheet ESW Series Other Related Documents 01 +1

ESW-105-12-T-D

Active

Samtec Inc.

CONN SOCKET 10POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsESW Datasheet ESW Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESW-105-12-T-D

Connector Type	Elevated Socket
Contact Finish - Post	Tin
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	550 VAC

ESW-105 Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish - Post	Insulation Height	Insulation Height	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Shape	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Material	Fastening Type	Voltage Rating	Number of Positions	Connector Type	Contact Material	Termination	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post
Samtec Inc. ESW-105-12-T-D	105 ░C	-55 °C	UL94 V-0	Tin	0.435 in	11.05 mm	5.2 A	2.54 mm	0.1 in	2	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC	10	Elevated Socket	Phosphor Bronze	Solder	All	Through Hole	0.09 "	2.29 mm
Samtec Inc. ESW-105-13-G-S-LL	125 °C	-55 °C	UL94 V-0	Gold	0.435 in	11.05 mm	5.2 A			1	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC		Elevated Socket	Phosphor Bronze	Kinked Pin Solder	All	Through Hole			Gold	3 µin	0.076 µm	0.29 "	7.37 mm	0.51 µm	20 µin
Samtec Inc. ESW-105-49-G-D-LL	125 °C	-55 °C	UL94 V-0	Gold	0.535 in	13.6 mm	5.2 A	2.54 mm	0.1 in	2	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC	10	Elevated Socket	Phosphor Bronze	Kinked Pin Solder	All	Through Hole	0.38 in	9.65 mm	Gold	3 µin	0.076 µm			0.51 µm	20 µin
Samtec Inc. ESW-105-39-G-D	125 °C	-55 °C	UL94 V-0	Gold	0.435 in	11.05 mm	5.2 A	2.54 mm	0.1 in	2	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC	10	Elevated Socket	Phosphor Bronze	Solder	All	Through Hole		0.48 in	Gold	3 µin	0.076 µm			0.51 µm	20 µin	12.19 mm
Samtec Inc. ESW-105-23-S-S	125 °C	-55 °C	UL94 V-0	Tin	0.535 in	13.6 mm	5.2 A			1	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC		Elevated Socket	Phosphor Bronze	Solder	All	Through Hole	0.19 in	4.83 mm	Gold					0.76 Ám	30 Áin
Samtec Inc. ESW-105-23-G-D-LL	125 °C	-55 °C	UL94 V-0	Gold	0.535 in	13.6 mm	5.2 A	2.54 mm	0.1 in	2	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC	10	Elevated Socket	Phosphor Bronze	Kinked Pin Solder	All	Through Hole	0.19 in	4.83 mm	Gold	3 µin	0.076 µm			0.51 µm	20 µin
Samtec Inc. ESW-105-13-L-D	125 °C	-55 °C	UL94 V-0	Tin	0.435 in	11.05 mm	5.2 A	2.54 mm	0.1 in	2	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC	10	Elevated Socket	Phosphor Bronze	Solder	All	Through Hole			Gold			0.29 "	7.37 mm	0.25 çm	10 çin
Samtec Inc. ESW-105-24-S-S	125 °C	-55 °C	UL94 V-0	Tin	0.535 in	13.6 mm	5.2 A			1	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC		Elevated Socket	Phosphor Bronze	Solder	All	Through Hole	0.38 in	9.65 mm	Gold					0.76 Ám	30 Áin
Samtec Inc. ESW-105-38-G-D	125 °C	-55 °C	UL94 V-0	Gold	0.435 in	11.05 mm	5.2 A	2.54 mm	0.1 in	2	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC	10	Elevated Socket	Phosphor Bronze	Solder	All	Through Hole			Gold	3 µin	0.076 µm	0.29 "	7.37 mm	0.51 µm	20 µin
Samtec Inc. ESW-105-24-T-D	105 ░C	-55 °C	UL94 V-0	Tin	0.535 in	13.6 mm	5.2 A	2.54 mm	0.1 in	2	Square	Forked	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Push-Pull	550 VAC	10	Elevated Socket	Phosphor Bronze	Solder	All	Through Hole	0.38 in	9.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.48
		10	$ 1.89
		100	$ 1.46
		500	$ 1.23
		1000	$ 1.14
		5000	$ 0.98
		10000	$ 0.94
