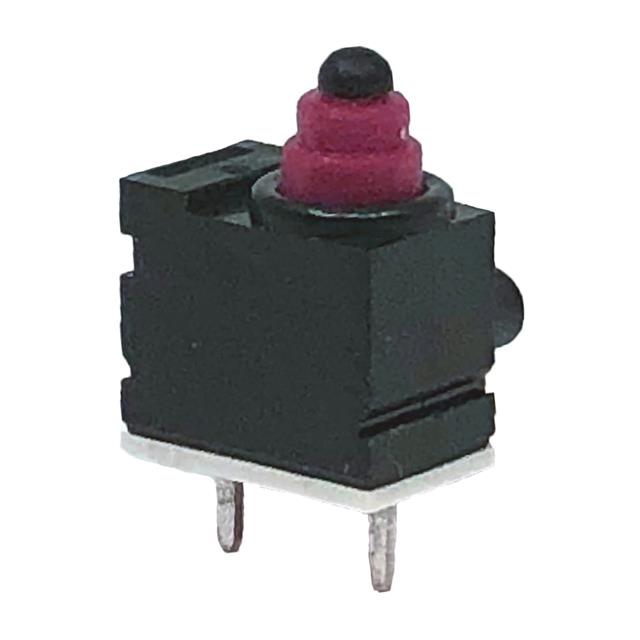

Specification	TD1250AF160QP1

Actuator Type	Round (Pin Plunger)
Circuit	SPST-NO
Current Rating	50 mA
Electrical Life (Cycles)	150000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Through Hole
Operating Force	160 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Voltage Rating - DC	16 V

TD1250 Series

Part	Operating Force	Actuator Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Electrical Life (Cycles)	Switch Function	Termination Style	Voltage Rating - DC	Current Rating	Mechanical Life (Cycles)	Circuit
E-Switch TD1250BF160QS1	160 gf	Lever Straight	Panel Mount	-40 °C	85 °C	Dust Tight Waterproof	IP67	150000 Cycles	Off-Mom	Solder Lug	16 V	50 mA	50000 Cycles	SPST-NO
E-Switch TD1250BF160QP1	160 gf	Lever Straight	Through Hole	-40 °C	85 °C	Dust Tight Waterproof	IP67	150000 Cycles	Off-Mom	PC Pin	16 V	50 mA	50000 Cycles	SPST-NO
E-Switch TD1250CF160QS1	160 gf	Lever Simulated Roller	Panel Mount	-40 °C	85 °C	Dust Tight Waterproof	IP67	150000 Cycles	Off-Mom	Solder Lug	16 V	50 mA	50000 Cycles	SPST-NO
E-Switch TD1250AF160QP1	160 gf	Round (Pin Plunger)	Through Hole	-40 °C	85 °C	Dust Tight Waterproof	IP67	150000 Cycles	Off-Mom	PC Pin	16 V	50 mA	500000 Cycles	SPST-NO
E-Switch TD1250CF160QP1	160 gf	Lever Simulated Roller	Through Hole	-40 °C	85 °C	Dust Tight Waterproof	IP67	150000 Cycles	Off-Mom	PC Pin	16 V	50 mA	50000 Cycles	SPST-NO
