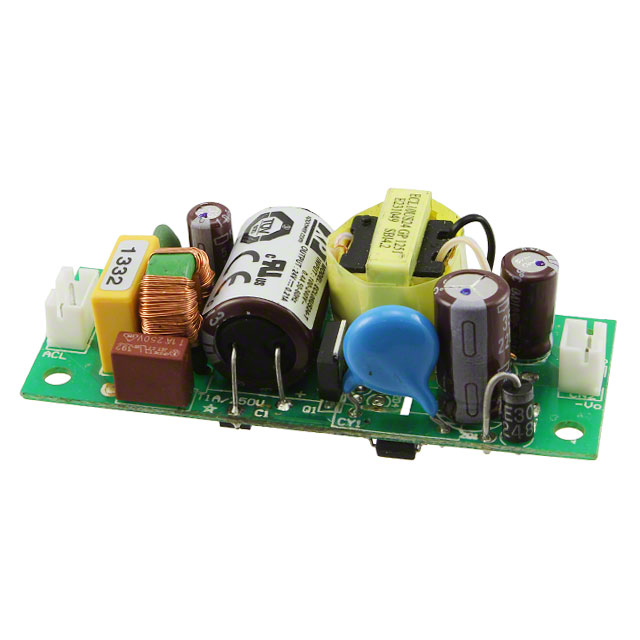

ECL05US24-T

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, ADJUSTABLE, FIXED

Search across all available documentation for this part.

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, ADJUSTABLE, FIXED

Technical Specifications

Parameters and characteristics for this part

Specification	ECL05US24-T

Applications	ITE (Commercial)
Current - Output 1	210 mA
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	5 W
Size / Dimension [x]	87.9 mm
Size / Dimension [x]	3.46 "
Size / Dimension [y]	1.36 "
Size / Dimension [y]	34.6 mm
Size / Dimension [z]	22.4 mm
Size / Dimension [z]	0.88 in
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Applications	Voltage - Output 1	Efficiency	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1	Standard Number	Type	Mounting Type	Power (Watts)	Features
XP POWER ECL05US12-T	-20 °C	70 °C	1	ITE (Commercial)	12 V	78 %	3000 V	87.9 mm	1.36 "	3.46 "	22.4 mm	0.88 in	34.6 mm	410 mA	62368-1	Open Frame	Chassis Mount	5 W	Adjustable Output DC Input Capable Universal Input
XP POWER ECL05US24-T	-20 °C	70 °C	1	ITE (Commercial)	24 V		3000 V	87.9 mm	1.36 "	3.46 "	22.4 mm	0.88 in	34.6 mm	210 mA	62368-1	Open Frame	Chassis Mount	5 W	Adjustable Output DC Input Capable Universal Input
XP POWER ECL05US09-T	-20 °C	70 °C	1	ITE (Commercial)	9 V	78 %	3000 V	87.9 mm	1.36 "	3.46 "	22.4 mm	0.88 in	34.6 mm	550 mA	62368-1	Open Frame	Chassis Mount	5 W	Adjustable Output DC Input Capable Universal Input
