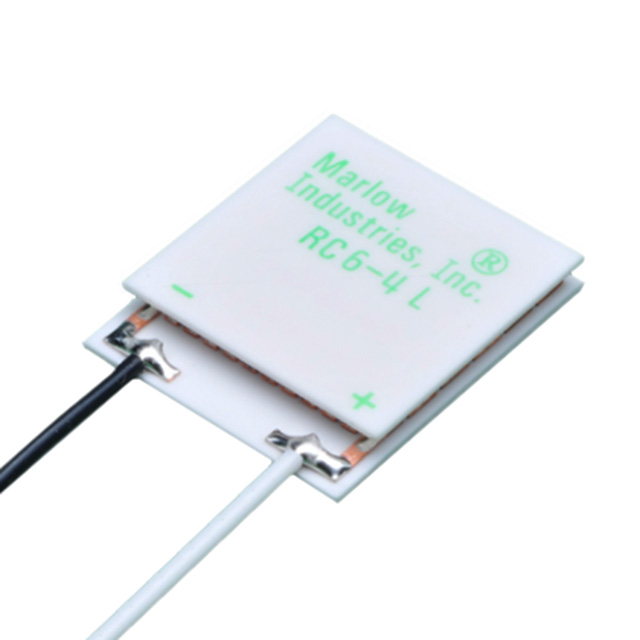

Specification	RC6-4-01LS

Current - Max	3.7 A
Delta Tmax	65 °C
Features	Lapped, Sealed, Lead Wires
Height	3.33 mm
Maximum Power Dissipation (Qmax)	20 W
Number of Stages	1
Operating Temperature	130 °C
Resistance	1.8 Ohm
Size / Dimension Length	28 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	23.5 mm
Type	TEC (Thermoelectric Cooler)
Voltage - Max	8.2 V

RC6-4 Series

Part	Resistance	Type	Current - Max	Voltage - Max	Operating Temperature	Number of Stages	Features	Maximum Power Dissipation (Qmax)	Delta Tmax	Size / Dimension Shape	Size / Dimension Width	Size / Dimension Length	Height
Marlow Industries, Inc. RC6-4-01	1.8 Ohm	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lead Wires	20 W	65 °C	Rectangular	23.5 mm	28 mm	3.43 mm
Marlow Industries, Inc. RC6-4-01S	1.8 Ohm	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lead Wires Sealed	20 W	65 °C	Rectangular	23.5 mm	28 mm	3.43 mm
Marlow Industries, Inc. RC6-4-01LS	1.8 Ohm	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lapped Lead Wires Sealed	20 W	65 °C	Rectangular	23.5 mm	28 mm	3.33 mm
Marlow Industries, Inc. RC6-4-01L	1.8 Ohm	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lapped Lead Wires	20 W	65 °C	Rectangular	23.5 mm	28 mm	3.33 mm
