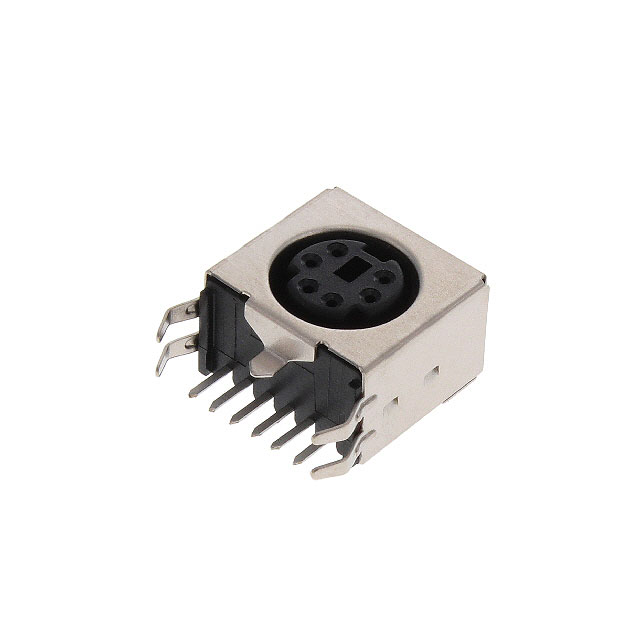

KMDTX-SMT-6S-BSC

Active

Kycon, Inc.

CONN RCPT FMALE MINI DIN 6P SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN RCPT FMALE MINI DIN 6P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	KMDTX-SMT-6S-BSC

Applications	Video, Audio
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	18 VDC

CONN RCPT FMALE MINI DIN 6P SLDR

Part	Primary Material	Termination	Shell Size - Insert	Contact Material	Shielding	Color	Fastening Type	Features	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Contact Finish - Mating	Orientation	Insert Material	Applications
Kycon, Inc. KMDTX-SMT-6S-BSC	Plastic	Solder	Mini DIN	Copper Alloy	Shielded	Black, Silver	Push-Pull	Board Guide, Board Lock	Flash	Surface Mount, Right Angle	6	UL94 V-0	70 °C	-25 °C	18 VDC	Receptacle, Female Sockets	Gold	Keyed	Thermoplastic	Audio, Video
