Q-0F038000H012i

Active

Amphenol Custom Cable

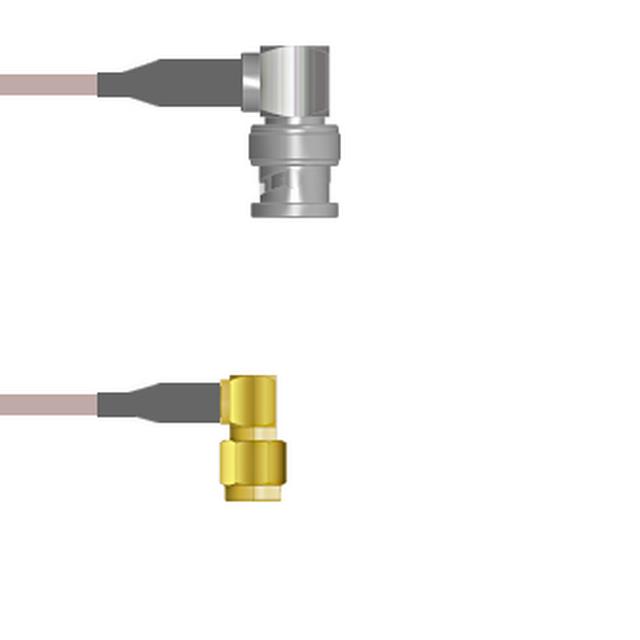

CBL ASSY BNC-SMA PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F038000H012i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F038000H012i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0F0380 Series

Part	Frequency - Max [Max]	2nd Connector Mounting Type	Color	Cable Type	1st Connector	Style	1st Connector Mounting Type	1st Contact Gender	Overall Impedance	2nd Contact Gender	Features	2nd Connector	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0F038000H2.5M	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-0F038000H006i	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle		6 in	152.4 mm
Amphenol Custom Cable Q-0F038000H084i	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle	7 ft	84 in	2.1 m
Amphenol Custom Cable Q-0F038000H024i	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle		24 "	609.6 mm
Amphenol Custom Cable Q-0F038000H018i	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle				457.2 mm	457.2 mm
Amphenol Custom Cable Q-0F038000H060i	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle	5 ft	5 '	1.5 m
Amphenol Custom Cable Q-0F038000H012i	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle		12 "	304.8 mm
Amphenol Custom Cable Q-0F038000H0.5M	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle		19.69 "	50 cm
Amphenol Custom Cable Q-0F038000H108i	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle	9 ft	108 in	2.7 m
Amphenol Custom Cable Q-0F038000H002M	4 GHz	Free Hanging (In-Line)	Copper	RG-142	BNC Plug Right Angle	BNC to SMA	Free Hanging (In-Line)	Male	50 Ohms	Male	Shielded	SMA Plug Right Angle	6.6 ft	78.7 in	2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 174.03
		25	$ 170.65
		50	$ 167.26
		100	$ 163.87
		250	$ 160.49

Description

General part information

Q-0F0380 Series

Cable Assembly Coaxial BNC to SMA RG-142 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
