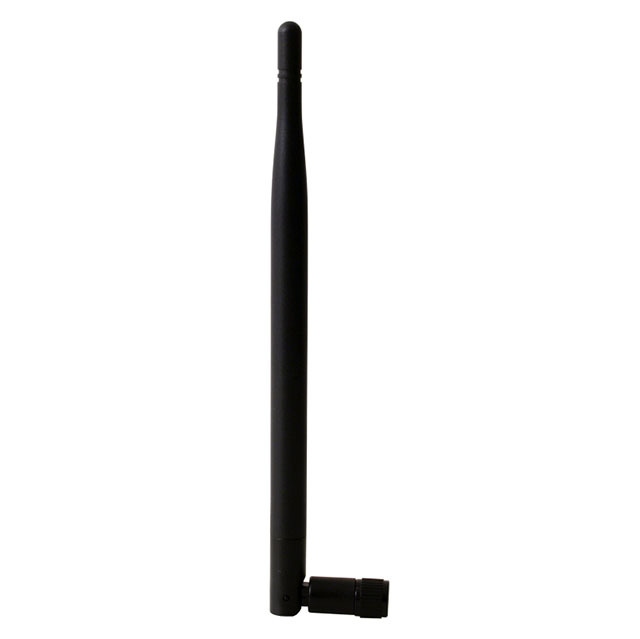

TA-S13B-B-WE02

Active

Unictron Technologies Corporation

WIFI HINGE ROTATABLE TERMINAL AN

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

WIFI HINGE ROTATABLE TERMINAL AN

Technical Specifications

Parameters and characteristics for this part

WIFI HINGE ROTATABLE TERMINAL AN

Part	Height (Max) [Max]	Height (Max) [Max]	Number of Bands	Antenna Type	Termination	Applications	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	RF Family/Standard	VSWR	Mounting Type	Frequency (Center/Band)	Return Loss
Unictron Technologies Corporation TA-S13B-B-WE02	6.693 in	170 mm	2	Tilt, Whip	RP-SMA Male	Wi-Fi	3.91 dBi, 4.27 dBi, 4.42 dBi, 4.64 dBi, 4.65 dBi, 4.74 dBi, 5.23 dBi	4 GHz	2 GHz	3 GHz	WiFi	1.92	Connector Mount	2.4 GHz, 5.8 GHz	10 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4GHz, 5.8GHz Wi-Fi Whip, Tilt RF Antenna 4.64dBi, 4.74dBi, 4.42dBi, 5.23dBi, 4.27dBi, 4.27dBi, 4.65dBi, 3.91dBi RP-SMA Male Connector Mount
