Q-0I04C00010.5M

Active

Amphenol Custom Cable

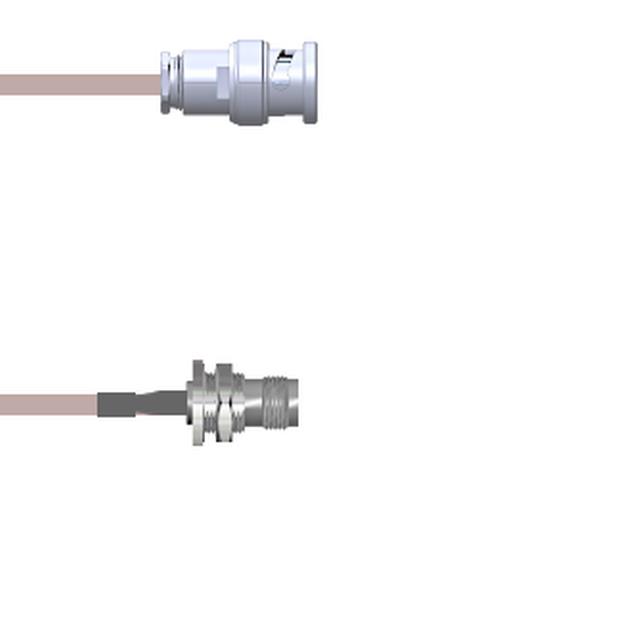

CBL ASSY BNC-TNC PLG-JACK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I04C00010.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLG-JACK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I04C00010.5M

1st Connector	BNC Plug
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0I04C0 Series

Part	1st Connector Mounting Feature	Length	Length	Features	1st Connector Mounting Type	1st Contact Gender	2nd Connector	Overall Impedance	Frequency - Max [Max]	Style	1st Connector	2nd Contact Gender	Color	Cable Type	2nd Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0I04C0001.75M	Bulkhead - Front Side Nut	29.53 "	750 mm	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I04C0001003i	Bulkhead - Front Side Nut	3 in	76.2 mm	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I04C0001036i	Bulkhead - Front Side Nut	36 in	91.44 cm	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I04C0001012i	Bulkhead - Front Side Nut	12 "	304.8 mm	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I04C0001048i	Bulkhead - Front Side Nut	48 in	1200 mm	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)	4 ft
Amphenol Custom Cable Q-0I04C00010.5M	Bulkhead - Front Side Nut	19.69 "	50 cm	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I04C0001018i	Bulkhead - Front Side Nut			Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0I04C0001060i	Bulkhead - Front Side Nut	5 '	1.5 m	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0I04C00011.5M	Bulkhead - Front Side Nut	59.1 in	1.5 m	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-0I04C0001072i	Bulkhead - Front Side Nut	72 in	1.8 m	Shielded	Panel Mount	Male	TNC Jack	50 Ohms	4 GHz	BNC to TNC	BNC Plug	Female	Copper	RG-178	Free Hanging (In-Line)	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 63.75
		25	$ 62.51
		50	$ 61.28
		100	$ 60.04
		250	$ 58.80

Description

General part information

Q-0I04C0 Series

Cable Assembly Coaxial BNC to TNC RG-178 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
