Description
General part information

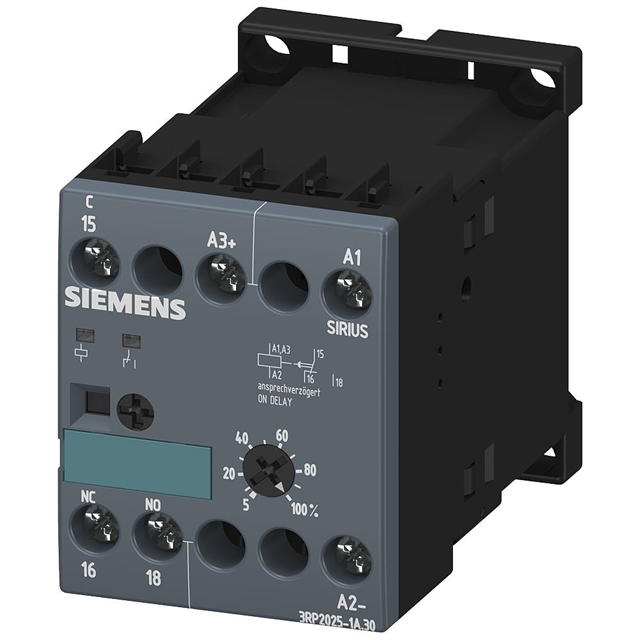

3RP2025 Series
On-Delay Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 100 Sec Delay 3A @ 250VAC Chassis Mount, DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RP20251AQ30 |
|---|---|
| Circuit | SPDT (1 Form C) |
| Contact Rating (Current) | 3 A |
| Delay Time (Maximum) | 100 Sec |
| Delay Time (Minimum) | 0.05 Sec |
| Function | On-Delay |
| Mounting Type | Chassis Mount, DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply (Maximum) | 127 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Voltage - Supply (Option 1) | 24 VAC, 24 VAC |
| Voltage - Supply (Option 2) | 24 DC, 24 DC |
| Voltage - Supply (Range 1 Maximum) | 127 VAC |
| Voltage - Supply (Range 1 Minimum) | 100 VAC |
