827795-7

Active

TE Connectivity AMP Connectors

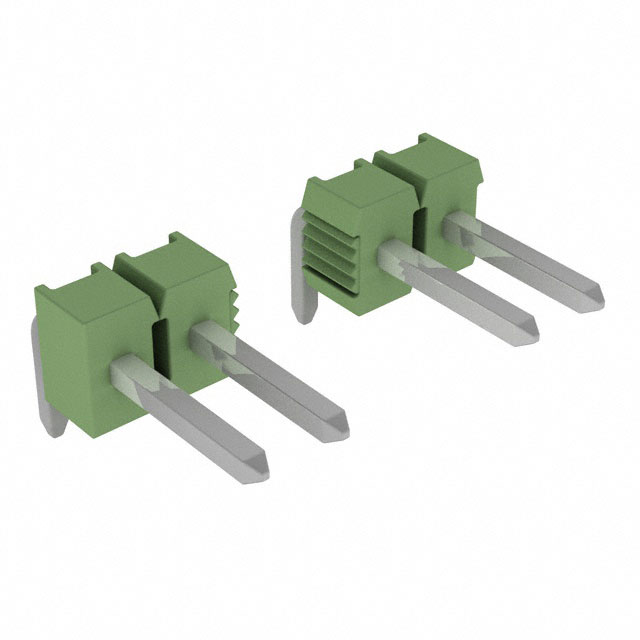

CONN HEADER R/A 7POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 7POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	827795-7

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	0.154 in
Contact Length - Mating	3.91 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 7POS 2.54MM

Part	Number of Positions	Contact Finish - Post	Contact Shape	Contact Length - Post	Contact Length - Post [x]	Contact Material	Insulation Color	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Connector Type	Fastening Type	Termination	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Type	Mounting Type	Insulation Material	Style	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 827795-7	7	Tin	Square	3.2 mm	0.126 in	Copper Alloy	Green	0.098 in	2.5 mm	0.1 in	2.54 mm	0.154 in	3.91 mm	Breakaway, Header	Push-Pull	Solder	All	78.7 µin	2 µm	1	Male Pin	Through Hole, Right Angle	Polybutylene Terephthalate (PBT), Glass Filled	Board to Board, Cable	Unshrouded	2 çm	78.7 çin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm)
