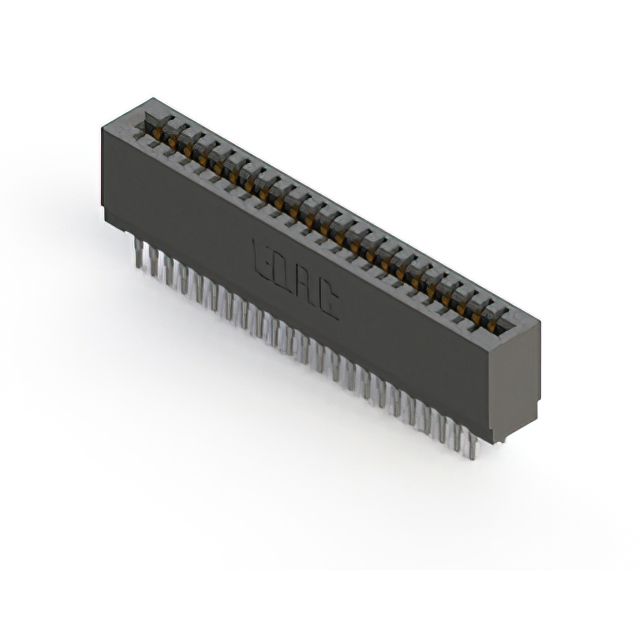

725-046-545-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.100

Search across all available documentation for this part.

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.100

Technical Specifications

Parameters and characteristics for this part

Specification	725-046-545-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	46
Number of Positions/Bay/Row [custom]	23
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap, Press-Fit
Termination Rows	2

Part	Number of Positions/Bay/Row [custom]	Contact Type	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Color	Termination Rows	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Number of Positions	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Termination	Mounting Type	Contact Finish	Material - Insulation
EDAC Inc. 725-046-541-201	23	Cantilever	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Black	2	2	-40 °C	105 ░C	Non Specified - Dual Edge	46	Copper Alloy	0.76 Ám	30 Áin	2.54 mm	0.1 in	Press-Fit Wire Wrap	Through Hole	Gold	Polyester Thermoplastic
EDAC Inc. 725-046-540-101	46	Cantilever	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Black	1	1	-40 °C	105 ░C	Non Specified - Single Edge	46	Copper Alloy	0.76 Ám	30 Áin	2.54 mm	0.1 in	Press-Fit Wire Wrap	Through Hole	Gold	Polyester Thermoplastic
EDAC Inc. 725-046-525-201	23	Cantilever	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Black	2	2	-40 °C	105 ░C	Non Specified - Dual Edge	46	Copper Alloy	0.76 Ám	30 Áin	2.54 mm	0.1 in	Press-Fit	Through Hole	Gold	Polyester Thermoplastic
EDAC Inc. 725-046-522-201	23	Cantilever	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Black	2	2	-40 °C	105 ░C	Non Specified - Dual Edge	46	Copper Alloy	0.76 Ám	30 Áin	2.54 mm	0.1 in	Press-Fit	Through Hole	Gold	Polyester Thermoplastic
EDAC Inc. 725-046-545-201	23	Cantilever	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Black	2	2	-40 °C	105 ░C	Non Specified - Dual Edge	46	Copper Alloy	0.76 Ám	30 Áin	2.54 mm	0.1 in	Press-Fit Wire Wrap	Through Hole	Gold	Polyester Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

46 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
