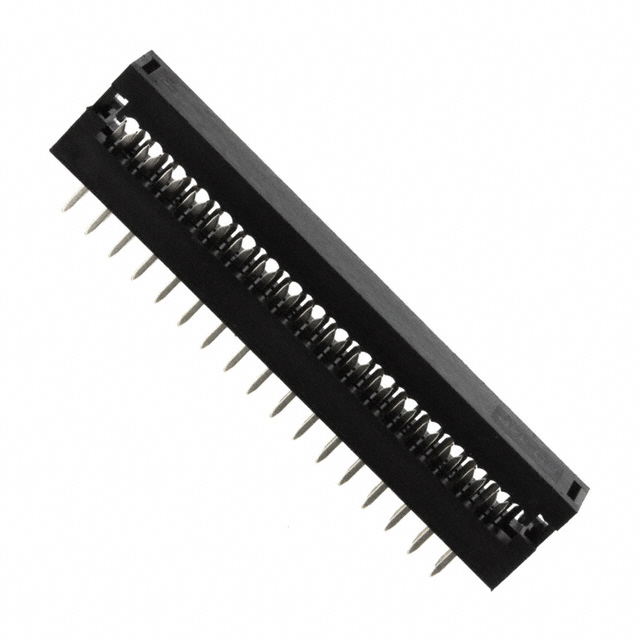

SIP110-PPPC-D17-ST-BK
ActiveSullins Connector Solutions
CONN DIP HDR IDC 34POS 28AWG PCB
Deep-Dive with AI
Search across all available documentation for this part.
SIP110-PPPC-D17-ST-BK
ActiveSullins Connector Solutions
CONN DIP HDR IDC 34POS 28AWG PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIP110-PPPC-D17-ST-BK |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Feed Through |
| Mounting Type | Through Hole, Press-Fit |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 28 AWG |
SIP110 Series
...
| Part | Board-Side Pitch | Board-Side Pitch | Mounting Type | Row Spacing [x] | Row Spacing | Contact Finish | Features | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge | Color | Cable Pitch | Cable Pitch | Connector Type | Number of Rows | Cable Termination | Number of Positions | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 0.1 in | 2.54 mm | Through Hole | 0.1 in | 2.54 mm | Tin | Cover | All | 2.54 µm | 100 µin | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 30 | ||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Kinked Pin Through Hole | 0.1 in | 2.54 mm | Gold | Cover | All | 0.38 µm | 15 µin | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 26 | ||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Through Hole Press-Fit | 0.1 in | 2.54 mm | Gold | Feed Through | All | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 34 | Flash | |||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Kinked Pin Through Hole | 0.1 in | 2.54 mm | Gold | Cover | All | 0.38 µm | 15 µin | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 8 | ||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Kinked Pin Through Hole | 0.1 in | 2.54 mm | Gold | Cover | All | 0.38 µm | 15 µin | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 60 | ||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Through Hole | 0.1 in | 2.54 mm | Gold | Cover | All | 0.38 µm | 15 µin | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 16 | ||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Kinked Pin Through Hole | 0.1 in | 2.54 mm | Gold | Cover | All | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 12 | Flash | |||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Kinked Pin Through Hole | 0.1 in | 2.54 mm | Gold | Cover | All | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 20 | Flash | |||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Kinked Pin Through Hole | 0.1 in | 2.54 mm | Tin | Cover | All | 2.54 µm | 100 µin | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 20 | ||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Kinked Pin Through Hole | 0.1 in | 2.54 mm | Gold | Cover | All | 28 AWG | Black | 1.27 mm | 0.05 in | DIP Header Ribbon Cable | 2 | IDC | 8 | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1000 | $ 0.87 | |
Description
General part information
SIP110 Series
34 Position Ribbon Cable, DIP Header Connector Black IDC 28 AWG Through Hole, Press-Fit
Documents
Technical documentation and resources
No documents available
